Square - 5 Flute - Variable Helix - Long Reach - Reduced Neck

End Mills for Steels & High Temperature Alloys
Square - 5 Flute - Variable Helix - Long Reach - Reduced Neck

VLR | Milling

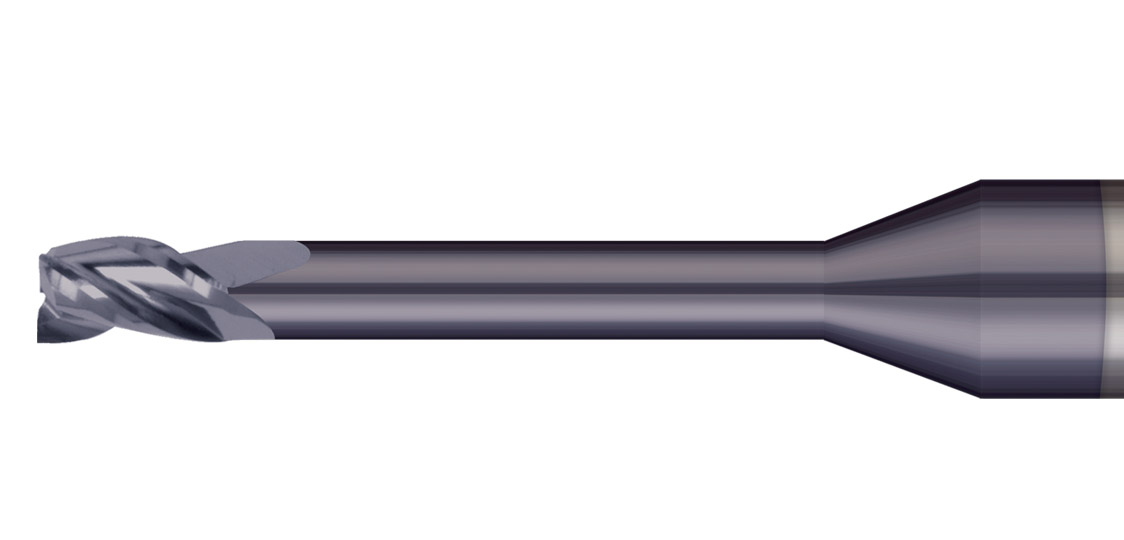

This end mill for steels and high temperature alloys has a long reach design for deep pocket milling, and is offered uncoated or with nACRO® coating for added heat resistance in difficult-to-machine materials.

  • Designed for high performance in titanium alloys, inconel, nickel alloys, and other high-temperature materials with outstanding performance in difficult-to-machine steels, stainless steels, and tool steels
  • Variable helix design reduces chatter and harmonics and increases material removal rates
  • Specialized geometry for maximum performance in high velocity tool paths
  • Long reach for deep pocket milling
  • Square profile
  • Weldon flat offered on sizes 3/8" and larger
  • Center cutting
  • nACRo® coating option for added heat resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

Cutter Diameter* Length of Cut Overall Reach Neck Diameter Flutes Shank Diameter Overall Length Uncoated nACRo® Coated Add to Cart Default Sort
D1 +.0000"-.0020" L2 +.010"/-.000" L3 +.015"/-.000" D3 # D2 (h6) L1 Tool # Price Tool # Price
.2500 .500 2.500 .230 5 .2500 4.0 VLR-250-5 $47.95 VLR-250-5K $56.25 00000001
*.0005" max TIR
Cutter Diameter* Length of Cut Overall Reach Neck Diameter Flutes Shank Diameter Overall Length Uncoated nACRo® Coated Add to Cart Default Sort
D1 +.0000"-.0030" L2 +.010"/-.000" L3 +.015"/-.000" D3 # D2 (h6) L1 Tool # Price Tool # Price
.3125 .625 2.625 .292 5 .3125 4.0 VLR-312-5 $51.00 VLR-312-5K $63.10 00000001
.3750 .750 2.750 .355 5 .3750 4.0 VLR-375-5 $70.50 VLR-375-5K $82.60 00000002
.5000 1.000 4.500 .480 5 .5000 6.0 VLR-500-5 $125.00 VLR-500-5K $144.90 00000003
