End Mills for Steels & High Temperature Alloys - Corner Radius - 4 Flute - Variable Helix

End Mills for Steels & High Temperature Alloys
End Mills for Steels & High Temperature Alloys - Corner Radius - 4 Flute - Variable Helix

VHS / VHSM / VHM / VHMM | Milling

The variable helix design of this solid carbide 4-flute, corner radius end mill for steels and high temperature alloys reduces chatter and harmonics and increases material removal rates.

  • Designed for high performance in titanium alloys, inconel, nickel alloys, and other high-temperature materials with outstanding performance in difficult-to-machine steels, stainless steels, and tool steels
  • Variable helix design reduces chatter and harmonics and increases material removal rates
  • Specialized geometry for maximum performance in high velocity tool paths
  • Corner radius profile
  • Weldon flat offered on sizes 3/8" and larger
  • Center cutting
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

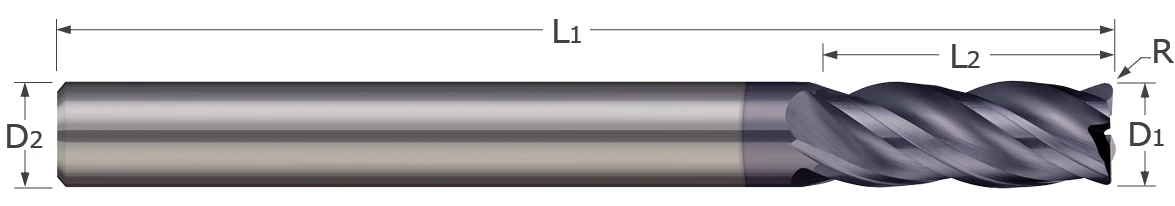

Cutter Diameter Length of Cut Corner Radius Flutes Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
D1 +.0000"/-.0020" h9 decimal equiv. L2 +.031"/-.000"
+.79mm/-.00mm
R +.0000" / -.0005"
+.000mm/-.013mm
# D2 (h6) L1 Tool # Price Tool # Price
3 mm .1181 6 mm 0.5 mm 4 4 mm 50 mm VHSM-030-4 $14.25 VHSM-030-4X $17.15 00000001
3 mm .1181 8 mm 0.5 mm 4 4 mm 50 mm VHMM-030-4X $18.65 00000002
.1250 .1250 .500 .010 4 .1250 1.5 VHM-125-4 $13.45 VHM-125-4X $15.95 00000003
4 mm .1575 8 mm 0.5 mm 4 4 mm 50 mm VHSM-040-4 $20.25 VHSM-040-4X $23.15 00000004
4 mm .1575 11 mm 0.5 mm 4 4 mm 50 mm VHMM-040-4 $22.50 VHMM-040-4X $25.40 00000005
.1875 .1875 .625 .010 4 .1875 2.0 VHM-187-4X $25.35 00000006
5 mm .1969 16 mm 0.5 mm 4 6 mm 57 mm VHMM-050-4 $26.70 VHMM-050-4X $31.60 00000007
*.0005" / .013 mm max TIR
Cutter Diameter Length of Cut Corner Radius Flutes Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
D1 +.0000"/-.0030" h9 decimal equiv. L2 +.031"/-.000"
+.79mm/-.00mm
R +.0000" / -.0005"
+.000mm/-.013mm
# D2 (h6) L1 Tool # Price Tool # Price
6 mm .2362 10 mm 0.5 mm 4 6 mm 57 mm VHSM-060-4 $24.00 00000001
6 mm .2362 16 mm 0.5 mm 4 6 mm 57 mm VHMM-060-4X $31.60 00000002
.2500 .2500 .500 .020 4 .2500 2.5 VHS-250-4 $23.80 VHS-250-4X $28.70 00000003
.2500 .2500 .750 .020 4 .2500 2.5 VHM-250-4X $31.35 00000004
.3125 .3125 .500 .020 4 .3125 2.5 VHS-312-4X $34.70 00000005
.3125 .3125 .813 .020 4 .3125 2.5 VHM-312-4X $37.80 00000006
8 mm .3150 16 mm 0.5 mm 4 8 mm 63 mm VHSM-080-4 $28.00 00000007
8 mm .3150 19 mm 0.5 mm 4 8 mm 63 mm VHMM-080-4 $31.15 VHMM-080-4X $37.95 00000008
.3750 .3750 .625 .020 4 .3750 2.5 VHS-375-4 $31.55 VHS-375-4X $38.35 00000009
.3750 .3750 .875 .020 4 .3750 2.5 VHM-375-4 $35.05 VHM-375-4X $41.85 00000010
10 mm .3937 19 mm 0.5 mm 4 10 mm 72 mm VHSM-100-4 $35.82 00000011
10 mm .3937 22 mm 0.6 mm 4 10 mm 72 mm VHMM-100-4 $39.80 VHMM-100-4X $46.60 00000012
.4375 .4375 1.000 .020 4 .4375 2.5 VHM-437-4 $54.70 VHM-437-4X $62.90 00000013
12 mm .4724 22 mm 0.5 mm 4 12 mm 83 mm VHSM-120-4X $61.40 00000014
12 mm .4724 26 mm 0.6 mm 4 12 mm 83 mm VHMM-120-4 $56.75 VHMM-120-4X $67.05 00000015
.5000 .5000 .625 .030 4 .5000 3.0 VHS-500-4 $54.55 00000016
.5000 .5000 1.000 .030 4 .5000 3.0 VHM-500-4X $68.80 00000017
.5000 .5000 1.250 .030 4 .5000 3.5 VHM-5125-4 $63.65 VHM-5125-4X $70.80 00000018
14 mm .5512 26 mm 0.7 mm 4 14 mm 83 mm VHMM-140-4X $110.65 00000019
.7500 .7500 1.500 .030 4 .7500 4.0 VHM-750-4X $188.00 00000020
20 mm .7874 38 mm 0.8 mm 4 20 mm 104 mm VHMM-200-4 $186.35 00000021
25 mm .9843 38 mm 0.8 mm 4 25 mm 127 mm VHMM-250-4X $285.75 00000022
