End Mills for Steels & High Temperature Alloys - Square - 4 & 6 Flute

End Mills for Steels & High Temperature Alloys
End Mills for Steels & High Temperature Alloys - Square - 4 & 6 Flute

EMH / EMHM | Milling

Designed for finishing in titanium alloys, Inconel, nickel alloys, and other high-temperature materials with outstanding performance in difficult-to-machine steels, stainless steels, and tool steels.

  • Designed for finishing in titanium alloys, inconel, nickel alloys, and other high-temperature materials with outstanding performance in difficult-to-machine steels, stainless steels, and tool steels
  • 38° helix for superior surface finish
  • Square profile
  • Weldon flat featured on sizes 3/8" and larger on ANSI shanks only
  • Center cutting
  • AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

* .0005" max TIR

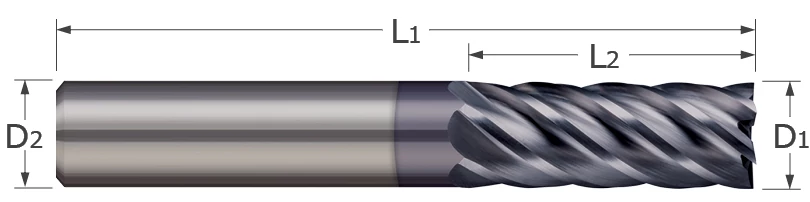

Cutter Diameter Length of Cut Flutes Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
D1 +.0000"/-.0002" h9 decimal equiv. L2 +.030"/-.000"
+.78mm/-.00mm
D2 (h6) L1 Tool # Price Tool # Price
3 mm .1181 8 mm 4 4 mm 50 mm EMHM-030-4 $17.35 00000001
4 mm .1574 12 mm 4 4 mm 50 mm EMHM-040-4 $17.35 EMHM-040-4X $20.25 00000002
6 mm .2362 18 mm 4 6 mm 57 mm EMHM-060-4 $21.75 EMHM-060-4X $26.65 00000003
6 mm .2362 18 mm 6 6 mm 57 mm EMHM-060-6 $21.75 EMHM-060-6X $26.65 00000004
.2500 .2500 .750 6 .2500 2.5 EMH-250-06 $28.90 EMH-250-06X $33.80 00000005
* .0005" max TIR
Cutter Diameter Length of Cut Flutes Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
D1 +.0000"/-.0003" h9 decimal equiv. L2 +.030"/-.000"
+.78mm/-.00mm
D2 (h6) L1 Tool # Price Tool # Price
.2813 .2813 .750 6 .3125 2.5 EMH-281-06 $33.60 EMH-281-06X $40.40 00000001
.3125 .3125 .813 6 .3125 2.5 EMH-312-06 $33.60 EMH-312-06X $40.40 00000002
8 mm .3150 20 mm 4 8 mm 63 mm EMHM-080-4 $26.90 EMHM-080-4X $33.70 00000003
8 mm .3150 20 mm 6 8 mm 63 mm EMHM-080-6 $26.90 EMHM-080-6X $33.70 00000004
.3750 .3750 .875 6 .3750 2.5 EMH-375-06 $38.10 EMH-375-06X $44.90 00000005
10 mm .3937 22 mm 4 10 mm 72 mm EMHM-100-4 $31.70 EMHM-100-4X $38.50 00000006
10 mm .3937 22 mm 6 10 mm 72 mm EMHM-100-6 $31.70 EMHM-100-6X $38.50 00000007
12 mm .4724 25 mm 4 12 mm 83 mm EMHM-120-4X $60.80 00000008
12 mm .4724 25 mm 6 12 mm 83 mm EMHM-120-6 $50.50 EMHM-120-6X $60.80 00000009
.5000 .5000 1.000 6 .5000 3.0 EMH-500-06 $66.00 EMH-500-06X $74.20 00000010
14 mm .5512 30 mm 6 14 mm 83 mm EMHM-140-6 $61.60 EMHM-140-6X $73.00 00000011
.6250 .6250 1.250 6 .6250 3.5 EMH-625-06 $116.75 00000012
16 mm .6299 35 mm 6 16 mm 92 mm EMHM-160-6 $98.25 EMHM-160-6X $110.65 00000013
18 mm .7086 45 mm 6 18 mm 92 mm EMHM-180-6X $146.35 00000014
.7500 .7500 1.500 6 .7500 4.0 EMH-750-06 $178.00 EMH-750-06X $192.30 00000015
20 mm .7874 45 mm 6 20 mm 104 mm EMHM-200-6 $168.40 EMHM-200-6X $188.40 00000016
1.0000 1.0000 1.500 6 1.0000 4.0 EMH-000-06 $269.60 00000017
1.0000 1.0000 2.500 6 1.0000 5.0 EMH-001-06X $358.75 00000018
