Brazed - Grooving Tools - GR Style - Square

Brazed - Grooving Tools
Brazed - Grooving Tools - GR Style - Square

GR | Turning Tools

Designed for plunging outside diameter (OD) grooves when the tool is held parallel to the axis, Micro 100's brazed, square grooving tools feature zinc coated shanks for durability and corrosion resistance.

  • Designed for plunging outside diameter (OD) grooves when the tool is held parallel to the axis
  • Square profile with .003" corner radius for added strength
  • Zinc coated shanks provide durability and corrosion resistance
  • Available in industry standard fractional shank sizes
  • Ground in the USA

Advanced Search

Width Projection Radius Shank Width Shank Height Overall Length GR Style Add to Cart Default Sort

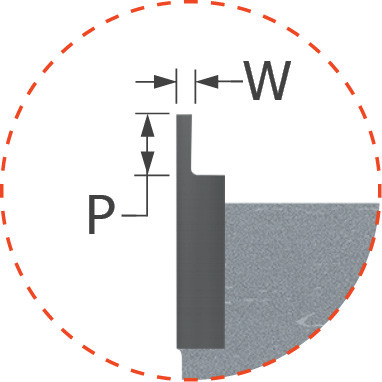

W +.002" / -.000" P +.000" / -.030" R (max) A +.000" / -.005" B +.000" / -.005" C (min) Tool # Price
.012 .030 .003 .7500 .3750 4.0 GR-012002 $24.40 00000001
.018 .060 .003 .7500 .3750 4.0 GR-018002 $24.40 00000002
.022 .090 .003 .7500 .3750 4.0 GR-022002 $24.40 00000003
.028 .090 .003 .7500 .3750 4.0 GR-028002 $24.40 00000004
.038 .120 .003 .7500 .3750 4.0 GR-038002 $24.40 00000005
.040 .150 .003 .7500 .3750 4.0 GR-040002 $24.40 00000006
.046 .150 .003 .7500 .3750 4.0 GR-046002 $24.40 00000007
.054 .180 .003 .7500 .3750 4.0 GR-054002 $24.40 00000008
.060 .210 .003 .7500 .3750 4.0 GR-060002 $24.40 00000009
.068 .210 .003 .7500 .3750 4.0 GR-068002 $24.40 00000010
.072 .240 .003 .7500 .3750 4.0 GR-072002 $24.40 00000011
.080 .270 .003 .7500 .3750 4.0 GR-080002 $24.40 00000012
.086 .270 .003 .7500 .3750 4.0 GR-086002 $24.40 00000013
.090 .300 .003 .7500 .3750 4.0 GR-090002 $24.40 00000014
.096 .300 .003 .7500 .3750 4.0 GR-096002 $24.40 00000015
.102 .400 .003 .7500 .3750 4.0 GR-102002 $24.40 00000016
.114 .400 .003 .7500 .3750 4.0 GR-114002 $24.40 00000017
.120 .400 .003 .7500 .3750 4.0 GR-120002 $24.40 00000018
.122 .400 .003 .7500 .3750 4.0 GR-122002 $24.40 00000019
