Brazed - Grooving Tools - GR Style - Full Radius

GR-F | Turning Tools

This brazed grooving tool is designed for plunging full radius outside diameter (OD) grooves when the tool is held parallel to the axis, and features zinc coated shanks for durability and corrosion resistance.

  • Designed for plunging full radius outside diameter (OD) grooves when the tool is held parallel to the axis
  • Zinc coated shanks provide durability and corrosion resistance
  • Available in industry standard fractional shank sizes
  • Ground in the USA

Advanced Search

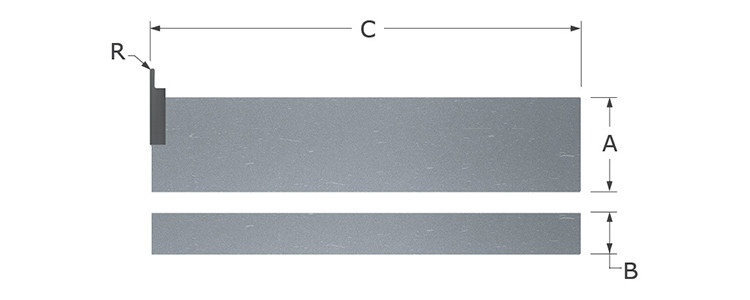

Radius Width Projection Shank Width Shank Height Overall Length GR-F Style Add to Cart Default Sort
R +.001" / -.000" W +.002" / -.000" P +.000" / -.030" A +.0000" / -.0050" B +.0000" / -.0050" C (min) Tool # Price
.006 .012 .030 .7500 .3750 4.0 GR-012F $28.25 00000001
.009 .018 .060 .7500 .3750 4.0 GR-018F $28.25 00000002
.011 .022 .090 .7500 .3750 4.0 GR-022F $28.25 00000003
.014 .028 .090 .7500 .3750 4.0 GR-028F $28.25 00000004
.019 .038 .120 .7500 .3750 4.0 GR-038F $28.25 00000005
.020 .040 .150 .7500 .3750 4.0 GR-040F $28.25 00000006
.023 .046 .150 .7500 .3750 4.0 GR-046F $28.25 00000007
.027 .054 .180 .7500 .3750 4.0 GR-054F $28.25 00000008
.030 .060 .210 .7500 .3750 4.0 GR-060F $28.25 00000009
.034 .068 .210 .7500 .3750 4.0 GR-068F $28.25 00000010
.036 .072 .240 .7500 .3750 4.0 GR-072F $28.25 00000011
.040 .080 .270 .7500 .3750 4.0 GR-080F $28.25 00000012
.043 .086 .270 .7500 .3750 4.0 GR-086F $28.25 00000013
.045 .090 .300 .7500 .3750 4.0 GR-090F $28.25 00000014
.048 .096 .300 .7500 .3750 4.0 GR-096F $28.25 00000015
.051 .102 .400 .7500 .3750 4.0 GR-102F $28.25 00000016
.057 .114 .400 .7500 .3750 4.0 GR-114F $28.25 00000017
.060 .120 .400 .7500 .3750 4.0 GR-120F $28.25 00000018
.061 .122 .400 .7500 .3750 4.0 GR-122F $28.25 00000019
