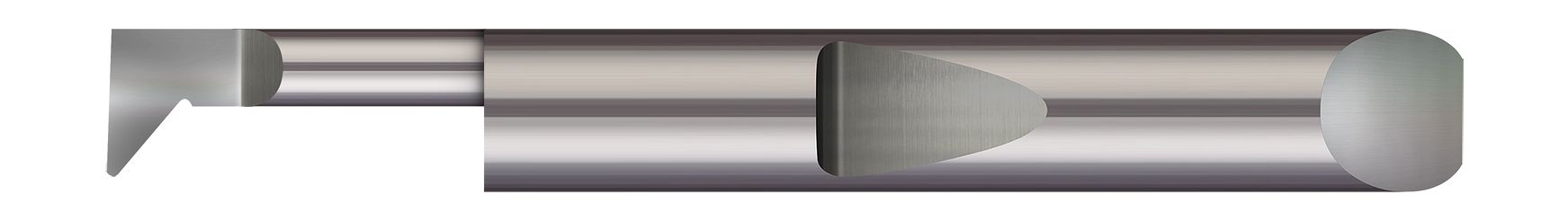

Tool # QPR-070200X
Quick Change - Profiling Tools - Radial Profiling, Quick Change - Profiling Tools
tool-details-QPR-070200X
tool-details-QPR-070200X
Tool # QPR-070200X
  • Head Width: 0.070"
  • Minimum Bore Diameter: 0.0700"
  • Maximum Bore Depth: 0.200"
  • Radius: 0.005"
  • Projection: 0.0250"
see more dimensions
  • Tool #: QPR-070200X
  • Quantity Available: 75
  • Price: $32.95
  • Customer Rating:
RESOURCES

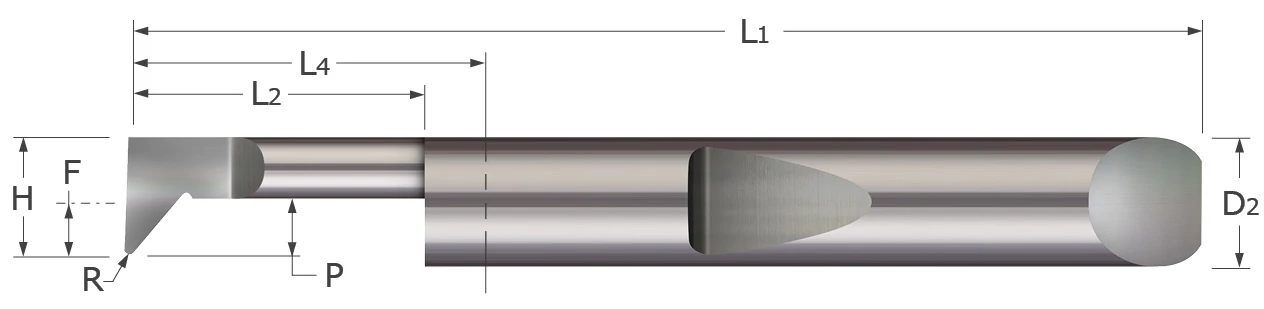

TOOL DIMENSION
  • Head Width 0.070"
  • Minimum Bore Diameter 0.0700"
  • Maximum Bore Depth 0.200"
  • Radius 0.005"
  • Projection 0.0250"
  • Length From Holder 0.590"
  • Centerline Offset -0.0238"
  • Shank Diameter 0.1875" (3/16)
  • Overall Length 1.50" (1-1/2)

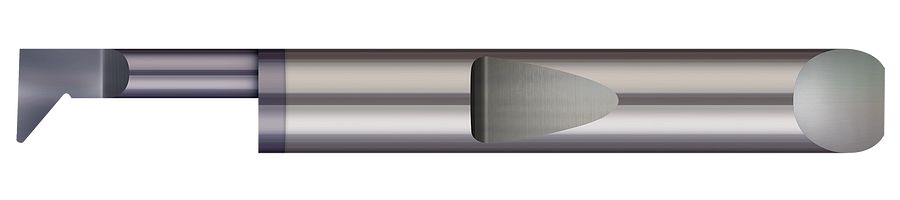

  • Coating AlTiN
  • Profile Radius
