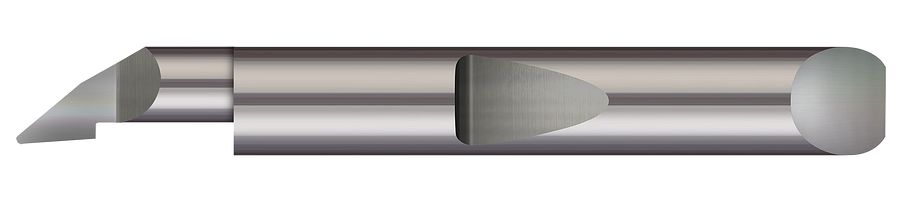

Tool # QPF-120500
Quick Change - Profiling Tools - Axial Profiling, Quick Change - Profiling Tools
tool-details-QPF-120500
tool-details-QPF-120500
Tool # QPF-120500
  • Minimum Bore Diameter: 0.1200"
  • Maximum Bore Depth: 0.500" (1/2)
  • Radius: 0.008"
  • Projection: 0.0200"
  • Length From Holder: 0.590"
see more dimensions
  • Tool #: QPF-120500
  • Quantity Available: 18
  • Price: $31.05
  • Customer Rating:
RESOURCES
TOOL DIMENSION
  • Minimum Bore Diameter 0.1200"
  • Maximum Bore Depth 0.500" (1/2)
  • Radius 0.008"
  • Projection 0.0200"
  • Length From Holder 0.590"
  • Centerline Offset 0.0263"
  • Shank Diameter 0.1875" (3/16)
  • Overall Length 1.50" (1-1/2)
  • Coating UN
  • Profile Radius
