Tool # QIT-050150

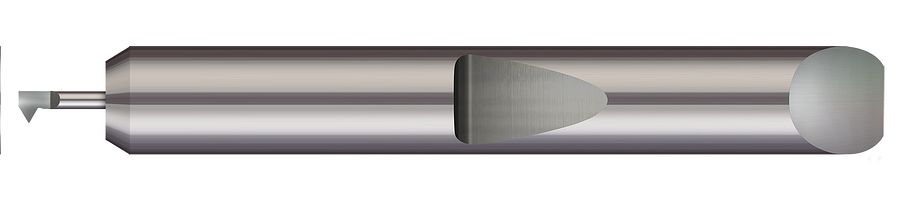

Quick Change - Threading Tools - UN Threads - Single Point - Miniature, Quick Change - Threading Tools
tool-details-QIT-050150
tool-details-QIT-050150
tool-details-QIT-050150
TOOL # QIT-050150
  • Threads Per Inch: 56-72
  • Head Width: 0.0500"
  • Minimum Bore Diameter: 0.0550" (1.4 mm)
  • Maximum Bore Depth: 0.150"
  • Point Offset: 0.015" (1/64)
see more dimensions
  • Tool #: QIT-050150
  • Quantity Available: 12
  • Price: $39.90
  • Customer Rating:
RESOURCES
TOOL DIMENSION
  • Threads Per Inch 56-72
  • Head Width 0.0500"
  • Minimum Bore Diameter 0.0550" (1.4 mm)
  • Maximum Bore Depth 0.150"
  • Point Offset 0.015" (1/64)
  • Projection 0.0200"
  • Length From Holder 0.590"
  • Centerline Offset 0.0350"
  • Shank Diameter 0.1875" (3/16)
  • Overall Length 1.50" (1-1/2)
  • Coating UN
  • Profile Radius
  • Catalog Page 51
