Tool # QBT-2001250X
Quick Change - Boring Tools - Top Rake Chipbreaker, Quick Change - Boring Tools
- Head Width: 0.2000"
- Minimum Bore Diameter: 0.2160"
- Maximum Bore Depth: 1.250" (1-1/4)
- Radius: 0.006"
- Projection: 0.0300"
- Tool #: QBT-2001250X
- Quantity Available: 22
- Price: $48.00
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries

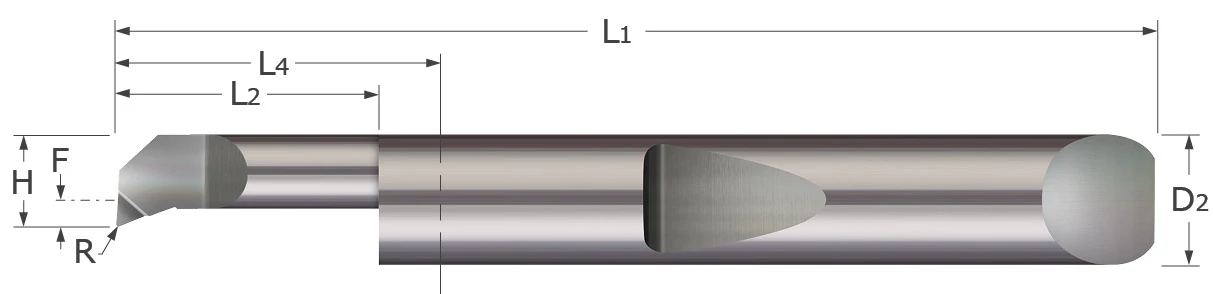

TOOL DIMENSIONS
- Head Width 0.2000"
- Minimum Bore Diameter 0.2160"
- Maximum Bore Depth 1.250" (1-1/4)
- Radius 0.006"
- Projection 0.0300"
- Length From Holder 1.353"
- Centerline Offset 0.0750"
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.50" (2-1/2)

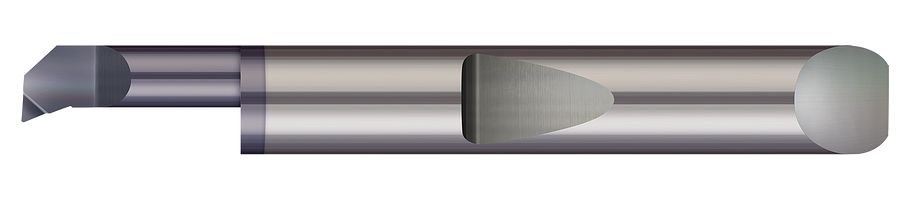

- Coating AlTiN
- Profile Radius
- Catalog Page 59
