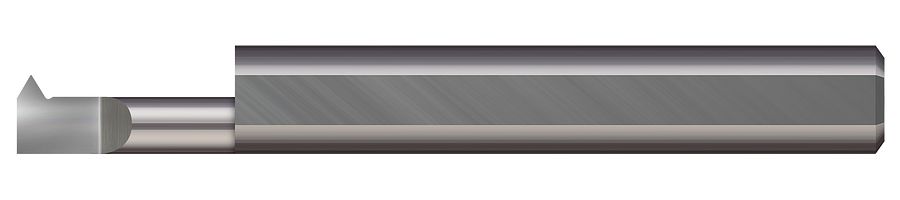

Tool # ITL-180500
Standard - Threading Tools - UN Threads - Single Point - Left Hand, Standard - Threading Tools
tool-details-ITL-180500
tool-details-ITL-180500
Tool # ITL-180500
  • Threads Per Inch: 24-56
  • Head Width: 0.180"
  • Minimum Bore Diameter: 0.2020"
  • Maximum Bore Depth: 0.500" (1/2)
  • Point Offset: 0.023"
see more dimensions
  • Tool #: ITL-180500
  • Quantity Available: 18
  • Price: $35.45
  • Customer Rating:
RESOURCES
TOOL DIMENSION
  • Threads Per Inch 24-56
  • Head Width 0.180"
  • Minimum Bore Diameter 0.2020"
  • Maximum Bore Depth 0.500" (1/2)
  • Point Offset 0.023"
  • Projection 0.0400"
  • Radius 0.0020"
  • Centerline Offset 0.0550"
  • Shank Diameter 0.2500" (1/4)
  • Overall Length 2.50" (2-1/2)
  • Coating UN
  • Profile Radius
