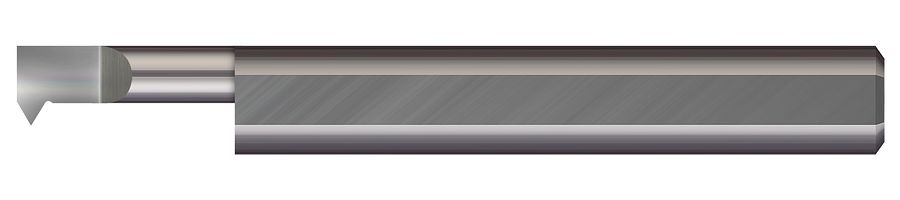

Tool # IT-490750
Standard - Threading Tools - UN Threads - Single Point - Right Hand, Standard - Threading Tools
tool-details-IT-490750
tool-details-IT-490750
Tool # IT-490750
  • Threads Per Inch: 8-24
  • Head Width: 0.490"
  • Minimum Bore Diameter: 0.5120" (13 mm)
  • Maximum Bore Depth: 0.750" (3/4)
  • Point Offset: 0.069"
see more dimensions
  • Tool #: IT-490750
  • Quantity Available: 94
  • Price: $81.00
  • Customer Rating:
RESOURCES

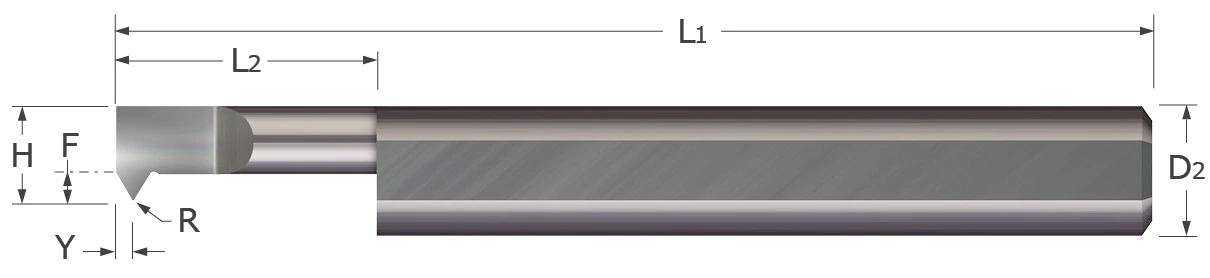

TOOL DIMENSION
  • Threads Per Inch 8-24
  • Head Width 0.490"
  • Minimum Bore Diameter 0.5120" (13 mm)
  • Maximum Bore Depth 0.750" (3/4)
  • Point Offset 0.069"
  • Projection 0.1200"
  • Radius 0.0020"
  • Centerline Offset 0.2400"
  • Shank Diameter 0.5000" (1/2)
  • Overall Length 3.00" (3)
  • Coating UN
  • Profile Radius
