Standard - Boring Tools - Right Hand

Standard - Boring Tools
BB | Turning Tools

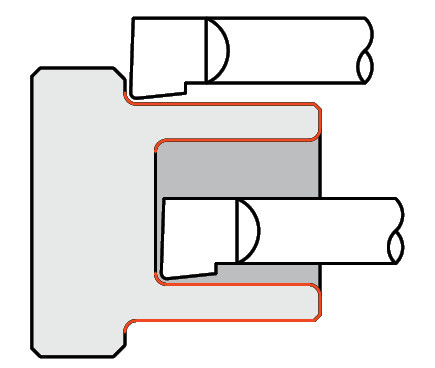

Optimized for facing and boring applications in bores .050" and larger, this line of right hand boring tools features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for facing and boring applications in bores .050" and larger

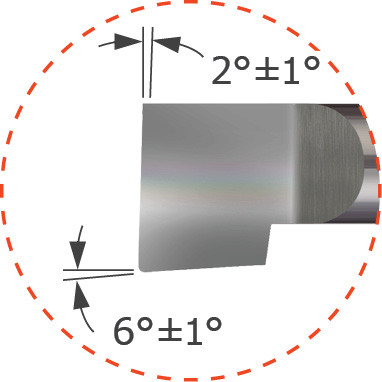

  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • Coating options provide added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

Minimum
Bore Diameter
Maximum
Bore Depth
Radius Projection Centerline Offset Shank
Diameter
Overall
Length
Uncoated TiN Coated AlTiN Coated Add to Cart Default Sort
D1 L2 +.050" / -.000" R +.003" / -.000" P F D2 (h6) L1 Tool # Price Tool # Price Tool # Price
.050 .150 .003 .012 -.013 .1250 1.5 BB-050150 $25.10 BB-050150G $27.00 BB-050150X $27.60 00000001
.050 .200 .003 .012 -.013 .1250 1.5 BB-050200 $25.10 BB-050200G $27.00 BB-050200X $27.60 00000002
.050 .300 .003 .012 -.013 .1250 1.5 BB-050300 $25.10 BB-050300G $27.00 BB-050300X $27.60 00000003
.050 .400 .003 .012 -.013 .1250 1.5 BB-050400 $25.10 BB-050400G $27.00 BB-050400X $27.60 00000004
.060 .150 .003 .015 -.003 .1250 1.5 BB-060150 $25.10 BB-060150G $27.00 BB-060150X $27.60 00000005
.060 .200 .003 .015 -.003 .1250 1.5 BB-060200 $25.10 BB-060200G $27.00 BB-060200X $27.60 00000006
.060 .300 .003 .015 -.003 .1250 1.5 BB-060300 $25.10 BB-060300G $27.00 BB-060300X $27.60 00000007
.060 .400 .003 .015 -.003 .1250 1.5 BB-060400 $25.10 BB-060400G $27.00 BB-060400X $27.60 00000008
.060 .500 .003 .015 -.003 .1250 1.5 BB-060500 $25.10 BB-060500G $27.00 BB-060500X $27.60 00000009
.070 .150 .003 .015 .008 .1250 1.5 BB-070150 $25.10 BB-070150X $27.60 00000010
.070 .200 .003 .015 .008 .1250 1.5 BB-070200 $25.10 BB-070200X $27.60 00000011
.070 .300 .003 .015 .008 .1250 1.5 BB-070300 $25.10 BB-070300X $27.60 00000012
.080 .150 .003 .020 .018 .1250 1.5 BB-080150 $25.10 BB-080150G $27.00 BB-080150X $27.60 00000013
.080 .200 .003 .020 .018 .1250 1.5 BB-080200 $25.10 BB-080200G $27.00 BB-080200X $27.60 00000014
.080 .300 .003 .020 .018 .1250 1.5 BB-080300 $25.10 BB-080300G $27.00 BB-080300X $27.60 00000015
.080 .400 .003 .020 .018 .1250 1.5 BB-080400 $25.10 BB-080400G $27.00 BB-080400X $27.60 00000016
.080 .500 .003 .020 .018 .1250 1.5 BB-080500 $25.10 BB-080500G $27.00 BB-080500X $27.60 00000017
.080 .600 .003 .020 .018 .1250 1.5 BB-080600 $25.10 BB-080600G $27.00 BB-080600X $27.60 00000018
.090 .300 .003 .020 .028 .1250 1.5 BB-090300 $25.10 BB-090300X $27.60 00000019
.100 .150 .003 .025 .038 .1250 1.5 BB-100150 $25.10 BB-100150G $27.00 BB-100150X $27.60 00000020
.100 .200 .003 .025 .038 .1250 1.5 BB-100200 $25.10 BB-100200G $27.00 BB-100200X $27.60 00000021
.100 .300 .003 .025 .038 .1250 1.5 BB-100300 $25.10 BB-100300G $27.00 BB-100300X $27.60 00000022
.100 .400 .003 .025 .038 .1250 1.5 BB-100400 $25.10 BB-100400G $27.00 BB-100400X $27.60 00000023
.100 .500 .003 .025 .038 .1250 1.5 BB-100500 $25.10 BB-100500G $27.00 BB-100500X $27.60 00000024
.100 .600 .003 .025 .038 .1250 1.5 BB-100600 $25.10 BB-100600G $27.00 BB-100600X $27.60 00000025
.100 .700 .003 .025 .038 .1250 1.5 BB-100700 $25.10 BB-100700G $27.00 BB-100700X $27.60 00000026
.110 .150 .003 .027 .048 .1250 1.5 BB-110150 $25.10 BB-110150G $27.00 BB-110150X $27.60 00000027
.110 .200 .003 .027 .048 .1250 1.5 BB-110200 $25.10 BB-110200G $27.00 BB-110200X $27.60 00000028
.110 .300 .003 .027 .048 .1250 1.5 BB-110300 $25.10 BB-110300G $27.00 BB-110300X $27.60 00000029
.110 .400 .003 .027 .048 .1250 1.5 BB-110400 $25.10 BB-110400G $27.00 BB-110400X $27.60 00000030
.110 .500 .003 .027 .048 .1250 1.5 BB-110500 $25.10 BB-110500G $27.00 BB-110500X $27.60 00000031
.110 .600 .003 .027 .048 .1250 1.5 BB-110600 $25.10 BB-110600G $27.00 BB-110600X $27.60 00000032
.110 .700 .003 .027 .048 .1250 1.5 BB-110700 $25.10 BB-110700G $27.00 BB-110700X $27.60 00000033
Minimum
Bore Diameter
Maximum
Bore Depth
Radius Projection Centerline Offset Shank
Diameter
Overall
Length
Uncoated TiN Coated AlTiN Coated Add to Cart Default Sort
D1 L2 +.050" / -.000" R +.002" / -.000" P # D2 (h6) L1 Tool # Price Tool # Price Tool # Price
.120 .250 .006 .030 .026 .1875 2.0 BB-120250 $26.65 BB-120250G $28.75 BB-120250X $29.55 00000001
.120 .350 .006 .030 .026 .1875 2.0 BB-120350 $26.65 BB-120350G $28.75 BB-120350X $29.55 00000002
.120 .500 .006 .030 .026 .1875 2.0 BB-120500 $26.65 BB-120500G $28.75 BB-120500X $29.55 00000003
.120 .600 .006 .030 .026 .1875 2.0 BB-120600 $26.65 BB-120600G $28.75 BB-120600X $29.55 00000004
.120 .700 .006 .030 .026 .1875 2.0 BB-120700 $26.65 BB-120700G $28.75 BB-120700X $29.55 00000005
.120 .800 .006 .030 .026 .1875 2.0 BB-120800 $26.65 BB-120800G $28.75 BB-120800X $29.55 00000006
.140 .250 .006 .035 .046 .1875 2.0 BB-140250 $26.65 BB-140250G $28.75 BB-140250X $29.55 00000007
.140 .400 .006 .035 .046 .1875 2.0 BB-140400 $26.65 BB-140400G $28.75 BB-140400X $29.55 00000008
.140 .500 .006 .035 .046 .1875 2.0 BB-140500 $26.65 BB-140500G $28.75 BB-140500X $29.55 00000009
.140 .600 .006 .035 .046 .1875 2.0 BB-140600 $26.65 BB-140600G $28.75 BB-140600X $29.55 00000010
.140 .700 .006 .035 .046 .1875 2.0 BB-140700 $26.65 BB-140700G $28.75 BB-140700X $29.55 00000011
.140 .750 .006 .035 .046 .1875 2.0 BB-140750 $26.65 BB-140750G $28.75 BB-140750X $29.55 00000012
.140 .800 .006 .035 .046 .1875 2.0 BB-140800 $26.65 BB-140800G $28.75 BB-140800X $29.55 00000013
.160 .250 .006 .040 .066 .1875 2.0 BB-160250 $26.65 BB-160250G $28.75 BB-160250X $29.55 00000014
.160 .400 .006 .040 .066 .1875 2.0 BB-160400 $26.65 BB-160400G $28.75 BB-160400X $29.55 00000015
.160 .500 .006 .040 .066 .1875 2.0 BB-160500 $26.65 BB-160500G $28.75 BB-160500X $29.55 00000016
.160 .600 .006 .040 .066 .1875 2.0 BB-160600 $26.65 BB-160600G $28.75 BB-160600X $29.55 00000017
.160 .750 .006 .040 .066 .1875 2.0 BB-160750 $26.65 BB-160750G $28.75 BB-160750X $29.55 00000018
.160 .900 .006 .040 .066 .1875 2.0 BB-160900 $26.65 BB-160900G $28.75 BB-160900X $29.55 00000019
.160 1.000 .006 .040 .066 .1875 2.0 BB-1601000 $26.65 BB-1601000G $28.75 BB-1601000X $29.55 00000020
.180 .350 .006 .045 .055 .2500 2.5 BB-180350 $28.80 BB-180350G $32.10 BB-180350X $33.70 00000021
.180 .500 .006 .045 .055 .2500 2.5 BB-180500 $28.80 BB-180500G $32.10 BB-180500X $33.70 00000022
.180 .600 .006 .045 .055 .2500 2.5 BB-180600 $28.80 BB-180600G $32.10 BB-180600X $33.70 00000023
.180 .750 .006 .045 .055 .2500 2.5 BB-180750 $28.80 BB-180750G $32.10 BB-180750X $33.70 00000024
.180 .900 .006 .045 .055 .2500 2.5 BB-180900 $28.80 BB-180900G $32.10 BB-180900X $33.70 00000025
.180 1.000 .006 .045 .055 .2500 2.5 BB-1801000 $28.80 BB-1801000G $32.10 BB-1801000X $33.70 00000026
.180 1.100 .006 .045 .055 .2500 2.5 BB-1801100 $28.80 BB-1801100G $32.10 BB-1801100X $33.70 00000027
.180 1.250 .006 .045 .055 .2500 2.5 BB-1801250 $28.80 BB-1801250G $32.10 BB-1801250X $33.70 00000028
.180 1.500 .006 .045 .055 .2500 2.5 BB-1801500 $28.80 BB-1801500G $32.10 BB-1801500X $33.70 00000029
.200 .400 .006 .050 .075 .2500 2.5 BB-200400 $28.80 BB-200400G $32.10 BB-200400X $33.70 00000030
.200 .500 .006 .050 .075 .2500 2.5 BB-200500 $28.80 BB-200500G $32.10 BB-200500X $33.70 00000031
.200 .600 .006 .050 .075 .2500 2.5 BB-200600 $28.80 BB-200600G $32.10 BB-200600X $33.70 00000032
.200 .700 .006 .050 .075 .2500 2.5 BB-200700 $28.80 BB-200700G $32.10 BB-200700X $33.70 00000033
.200 .800 .006 .050 .075 .2500 2.5 BB-200800 $28.80 BB-200800G $32.10 BB-200800X $33.70 00000034
.200 .900 .006 .050 .075 .2500 2.5 BB-200900 $28.80 BB-200900G $32.10 BB-200900X $33.70 00000035
.200 1.000 .006 .050 .075 .2500 2.5 BB-2001000 $28.80 BB-2001000G $32.10 BB-2001000X $33.70 00000036
.200 1.100 .006 .050 .075 .2500 2.5 BB-2001100 $28.80 BB-2001100X $33.70 00000037
.200 1.200 .006 .050 .075 .2500 2.5 BB-2001200 $28.80 BB-2001200G $32.10 BB-2001200X $33.70 00000038
.200 1.300 .006 .050 .075 .2500 2.5 BB-2001300 $28.80 BB-2001300G $32.10 BB-2001300X $33.70 00000039
.230 .400 .006 .057 .074 .3125 2.5 BB-230400 $38.65 BB-230400G $43.55 BB-230400X $45.45 00000040
.230 .500 .006 .057 .074 .3125 2.5 BB-230500 $38.65 BB-230500G $43.55 BB-230500X $45.45 00000041
.230 .600 .006 .057 .074 .3125 2.5 BB-230600 $38.65 BB-230600G $43.55 BB-230600X $45.45 00000042
.230 .700 .006 .057 .074 .3125 2.5 BB-230700 $38.65 BB-230700G $43.55 BB-230700X $45.45 00000043
.230 .800 .006 .057 .074 .3125 2.5 BB-230800 $38.65 BB-230800G $43.55 BB-230800X $45.45 00000044
.230 .900 .006 .057 .074 .3125 2.5 BB-230900 $38.65 BB-230900G $43.55 BB-230900X $45.45 00000045
.230 1.000 .006 .057 .074 .3125 2.5 BB-2301000 $38.65 BB-2301000G $43.55 BB-2301000X $45.45 00000046
.230 1.100 .006 .057 .074 .3125 2.5 BB-2301100 $38.65 BB-2301100G $43.55 BB-2301100X $45.45 00000047
.230 1.150 .006 .057 .074 .3125 2.5 BB-2301150 $38.65 BB-2301150G $43.55 BB-2301150X $45.45 00000048
.230 1.200 .006 .057 .074 .3125 2.5 BB-2301200 $38.65 BB-2301200G $43.55 BB-2301200X $45.45 00000049
.230 1.250 .006 .057 .074 .3125 2.5 BB-2301250 $38.65 BB-2301250G $43.55 BB-2301250X $45.45 00000050
.230 1.400 .006 .057 .074 .3125 2.5 BB-2301400 $38.65 BB-2301400G $43.55 BB-2301400X $45.45 00000051
.230 1.500 .006 .057 .074 .3125 2.5 BB-2301500 $38.65 BB-2301500G $43.55 BB-2301500X $45.45 00000052
.230 1.600 .006 .057 .074 .3125 2.5 BB-2301600 $38.65 BB-2301600G $43.55 BB-2301600X $45.45 00000053
.290 .500 .006 .072 .134 .3125 2.5 BB-290500 $38.65 BB-290500G $43.55 BB-290500X $45.45 00000054
.290 .600 .006 .072 .134 .3125 2.5 BB-290600 $38.65 BB-290600G $43.55 BB-290600X $45.45 00000055
.290 .750 .006 .072 .134 .3125 2.5 BB-290750 $38.65 BB-290750G $43.55 BB-290750X $45.45 00000056
.290 .900 .006 .072 .134 .3125 2.5 BB-290900 $38.65 BB-290900G $43.55 BB-290900X $45.45 00000057
.290 1.000 .006 .072 .134 .3125 2.5 BB-2901000 $38.65 BB-2901000G $43.55 BB-2901000X $45.45 00000058
.290 1.100 .006 .072 .134 .3125 2.5 BB-2901100 $38.65 BB-2901100G $43.55 BB-2901100X $45.45 00000059
.290 1.250 .006 .072 .134 .3125 2.5 BB-2901250 $38.65 BB-2901250G $43.55 BB-2901250X $45.45 00000060
.290 1.350 .006 .072 .134 .3125 2.5 BB-2901350 $38.65 BB-2901350G $43.55 BB-2901350X $45.45 00000061
.290 1.500 .006 .072 .134 .3125 2.5 BB-2901500 $38.65 BB-2901500G $43.55 BB-2901500X $45.45 00000062
.290 1.600 .006 .072 .134 .3125 2.5 BB-2901600 $38.65 BB-2901600G $43.55 BB-2901600X $45.45 00000063
.290 1.750 .006 .072 .134 .3125 2.5 BB-2901750 $38.65 BB-2901750G $43.55 BB-2901750X $45.45 00000064
.320 .500 .006 .080 .133 .3750 2.5 BB-320500 $52.75 BB-320500G $57.65 BB-320500X $59.55 00000065
.320 .600 .006 .080 .133 .3750 2.5 BB-320600 $52.75 BB-320600G $57.65 BB-320600X $59.55 00000066
.320 .750 .006 .080 .133 .3750 2.5 BB-320750 $52.75 BB-320750G $57.65 BB-320750X $59.55 00000067
.320 .900 .006 .080 .133 .3750 2.5 BB-320900 $52.75 BB-320900G $57.65 BB-320900X $59.55 00000068
.320 1.000 .006 .080 .133 .3750 2.5 BB-3201000 $52.75 BB-3201000G $57.65 BB-3201000X $59.55 00000069
.320 1.100 .006 .080 .133 .3750 2.5 BB-3201100 $52.75 BB-3201100G $57.65 BB-3201100X $59.55 00000070
.320 1.250 .006 .080 .133 .3750 2.5 BB-3201250 $52.75 BB-3201250G $57.65 BB-3201250X $59.55 00000071
.320 1.500 .006 .080 .133 .3750 2.5 BB-3201500 $52.75 BB-3201500G $57.65 BB-3201500X $59.55 00000072
.320 1.600 .006 .080 .133 .3750 2.5 BB-3201600 $52.75 BB-3201600G $57.65 BB-3201600X $59.55 00000073
.320 1.800 .006 .080 .133 .3750 2.5 BB-3201800 $52.75 BB-3201800G $57.65 BB-3201800X $59.55 00000074
.320 2.000 .006 .080 .133 .3750 4.0 BB-3202000 $67.45 BB-3202000G $73.35 BB-3202000X $75.85 00000075
.320 2.500 .006 .080 .133 .3750 4.0 BB-3202500 $67.45 BB-3202500G $73.35 BB-3202500X $75.85 00000076
.320 3.000 .006 .080 .133 .3750 4.0 BB-3203000 $67.45 BB-3203000X $75.85 00000077
.360 .500 .006 .090 .173 .3750 2.5 BB-360500 $52.75 BB-360500G $57.65 BB-360500X $59.55 00000078
.360 .600 .006 .090 .173 .3750 2.5 BB-360600 $52.75 BB-360600G $57.65 BB-360600X $59.55 00000079
.360 .750 .006 .090 .173 .3750 2.5 BB-360750 $52.75 BB-360750G $57.65 BB-360750X $59.55 00000080
.360 .900 .006 .090 .173 .3750 2.5 BB-360900 $52.75 BB-360900G $57.65 BB-360900X $59.55 00000081
.360 1.000 .006 .090 .173 .3750 2.5 BB-3601000 $52.75 BB-3601000G $57.65 BB-3601000X $59.55 00000082
.360 1.150 .006 .090 .173 .3750 2.5 BB-3601150 $52.75 BB-3601150G $57.65 BB-3601150X $59.55 00000083
.360 1.250 .006 .090 .173 .3750 2.5 BB-3601250 $52.75 BB-3601250G $57.65 BB-3601250X $59.55 00000084
.360 1.500 .006 .090 .173 .3750 2.5 BB-3601500 $52.75 BB-3601500G $57.65 BB-3601500X $59.55 00000085
.360 1.600 .006 .090 .173 .3750 2.5 BB-3601600 $52.75 BB-3601600G $57.65 BB-3601600X $59.55 00000086
.360 1.800 .006 .090 .173 .3750 2.5 BB-3601800 $52.75 BB-3601800G $57.65 BB-3601800X $59.55 00000087
.360 2.000 .006 .090 .173 .3750 4.0 BB-3602000 $67.45 BB-3602000G $73.35 BB-3602000X $75.85 00000088
.360 2.500 .006 .090 .173 .3750 4.0 BB-3602500 $67.45 BB-3602500G $73.35 BB-3602500X $75.85 00000089
.360 3.000 .006 .090 .173 .3750 4.0 BB-3603000 $67.45 BB-3603000G $73.35 BB-3603000X $75.85 00000090
.490 .750 .006 .122 .240 .5000 3.0 BB-490750 $73.50 BB-490750G $79.30 BB-490750X $81.70 00000091
.490 1.000 .006 .122 .240 .5000 3.0 BB-4901000 $73.50 BB-4901000G $79.30 BB-4901000X $81.70 00000092
.490 1.250 .006 .122 .240 .5000 3.0 BB-4901250 $73.50 BB-4901250G $79.30 BB-4901250X $81.70 00000093
.490 1.500 .006 .122 .240 .5000 3.0 BB-4901500 $73.50 BB-4901500G $79.30 BB-4901500X $81.70 00000094
.490 2.000 .006 .122 .240 .5000 4.0 BB-4902000 $80.60 BB-4902000G $87.60 BB-4902000X $90.90 00000095
.490 2.500 .006 .122 .240 .5000 4.0 BB-4902500 $80.60 BB-4902500G $87.60 BB-4902500X $90.90 00000096
.490 2.600 .006 .122 .240 .5000 4.0 BB-4902600G $87.60 00000097
.490 2.750 .006 .122 .240 .5000 4.0 BB-4902750 $80.60 BB-4902750G $87.60 BB-4902750X $90.90 00000098
.490 3.000 .006 .122 .240 .5000 6.0 BB-4903000 $101.15 BB-4903000G $110.35 BB-4903000X $115.15 00000099
.490 3.500 .006 .122 .240 .5000 6.0 BB-4903500 $101.15 BB-4903500G $110.35 BB-4903500X $115.15 00000100
.490 4.000 .006 .122 .240 .5000 6.0 BB-4904000 $101.15 BB-4904000X $115.15 00000101
.490 4.500 .006 .122 .240 .5000 6.0 BB-4904500 $101.15 BB-4904500G $110.35 BB-4904500X $115.15 00000102
