Quick Change - Profiling Tools - Angled Profiling

Quick Change - Profiling Tools
QPA | Turning Tools

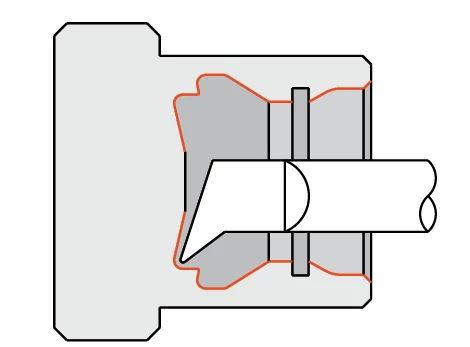

Designed for both radial and axial profiling, this tool is an excellent choice for fine finishing applications. Offered uncoated, or with AlTiN coating for added lubricity and increased wear resistance in difficult to machine materials.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versatility and part feature creation
  • Excellent choice for fine finishing
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik™ quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

*Suggested Minimum Bore Diameter to accommodate chip evacuation and retract clearance in static (not live) applications.
Head Width Minimum Bore Diameter* Maximum Bore Depth Radius Projection Length From Holder Centerline Offset Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
H   L2 +.030"/-.000" R +.0005" / -.0005" P L4 F D2(h6) L1 Tool # Price Tool # Price
.0500 .0550 .150 .0020 .015 .590 -.043 .1875 1.5 QPA2-050150 $31.05 QPA2-050150X $32.95 00000001
.0500 .0550 .200 .0020 .015 .590 -.043 .1875 1.5 QPA2-050200 $31.05 QPA2-050200X $32.95 00000002
.0600 .0700 .150 .0020 .020 .590 -.033 .1875 1.5 QPA2-060150 $31.05 QPA2-060150X $32.95 00000003
.0600 .0700 .200 .0020 .020 .590 -.033 .1875 1.5 QPA2-060200 $31.05 QPA2-060200X $32.95 00000004
.0700 .0800 .150 .0020 .020 .590 -.023 .1875 1.5 QPA2-070150 $31.05 QPA2-070150X $32.95 00000005
.0700 .0800 .200 .0020 .020 .590 -.023 .1875 1.5 QPA2-070200 $31.05 QPA2-070200X $32.95 00000006
.0800 .0900 .200 .0020 .025 .590 -.013 .1875 1.5 QPA2-080200 $31.05 QPA2-080200X $32.95 00000007
.0800 .0900 .300 .0020 .025 .590 -.013 .1875 1.5 QPA2-080300 $31.05 QPA2-080300X $32.95 00000008
.0900 .1000 .200 .0020 .030 .590 -.003 .1875 1.5 QPA2-090200 $31.05 QPA2-090200X $32.95 00000009
.0900 .1000 .300 .0020 .030 .590 -.003 .1875 1.5 QPA2-090300 $31.05 QPA2-090300X $32.95 00000010
.1000 .1100 .200 .0020 .030 .590 .006 .1875 1.5 QPA2-100200 $31.05 QPA2-100200X $32.95 00000011
.1000 .1100 .200 .0050 .030 .590 .006 .1875 1.5 QPA5-100200 $31.05 QPA5-100200X $32.95 00000012
.1000 .1100 .300 .0020 .030 .590 .006 .1875 1.5 QPA2-100300 $31.05 QPA2-100300X $32.95 00000013
.1000 .1100 .300 .0050 .030 .590 .006 .1875 1.5 QPA5-100300 $31.05 QPA5-100300X $32.95 00000014
.1100 .1240 .250 .0050 .035 .590 .016 .1875 1.5 QPA5-110250 $31.05 QPA5-110250X $32.95 00000015
.1100 .1240 .375 .0050 .035 .590 .016 .1875 1.5 QPA5-110375 $31.05 QPA5-110375X $32.95 00000016
.1200 .1340 .250 .0050 .035 .590 .026 .1875 1.5 QPA5-120250 $31.05 QPA5-120250X $32.95 00000017
.1200 .1340 .375 .0050 .035 .590 .026 .1875 1.5 QPA5-120375 $31.05 QPA5-120375X $32.95 00000018
.1400 .1540 .375 .0050 .040 .590 .046 .1875 1.5 QPA5-140375 $31.05 QPA5-140375X $32.95 00000019
.1400 .1540 .500 .0050 .040 .590 .046 .1875 1.5 QPA5-140500 $31.05 QPA5-140500X $32.95 00000020
.1600 .1780 .375 .0050 .050 .590 .066 .1875 1.5 QPA5-160375 $31.05 QPA5-160375X $32.95 00000021
.1600 .1780 .500 .0050 .050 .590 .066 .1875 1.5 QPA5-160500 $31.05 QPA5-160500X $32.95 00000022
.1800 .1980 .375 .0050 .055 .853 .055 .2500 2.0 QPA5-180375 $38.85 QPA5-180375X $42.75 00000023
.1800 .1980 .500 .0050 .055 .853 .055 .2500 2.0 QPA5-180500 $38.85 QPA5-180500X $42.75 00000024
.2000 .2180 .500 .0050 .060 .853 .075 .2500 2.0 QPA5-200500 $38.85 QPA5-200500X $42.75 00000025
.2000 .2180 .500 .0080 .060 .853 .075 .2500 2.0 QPA8-200500 $38.85 QPA8-200500X $42.75 00000026
.2000 .2180 .750 .0050 .060 .853 .075 .2500 2.0 QPA5-200750 $38.85 QPA5-200750X $42.75 00000027
.2000 .2180 .750 .0080 .060 .853 .075 .2500 2.0 QPA8-200750 $38.85 QPA8-200750X $42.75 00000028
.2300 .2520 .500 .0080 .070 .853 .073 .3125 2.0 QPA8-230500 $48.45 QPA8-230500X $52.65 00000029
.2300 .2520 .750 .0080 .070 .853 .073 .3125 2.0 QPA8-230750 $48.45 QPA8-230750X $52.65 00000030
.2600 .2820 .750 .0080 .080 .853 .103 .3125 2.0 QPA8-260750 $48.45 QPA8-260750X $52.65 00000031
.2600 .2820 1.000 .0080 .080 1.353 .103 .3125 2.5 QPA8-2601000 $48.45 QPA8-2601000X $54.25 00000032
.3000 .3220 .750 .0080 .090 .853 .143 .3125 2.0 QPA8-300750 $48.45 QPA8-300750X $52.65 00000033
.3000 .3220 1.000 .0080 .090 1.353 .143 .3125 2.5 QPA8-3001000 $48.45 QPA8-3001000X $54.25 00000034
.3600 .3820 .750 .0080 .110 .853 .172 .3750 2.0 QPA8-360750 $63.15 QPA8-360750X $68.95 00000035
.3600 .3820 1.000 .0080 .110 1.353 .172 .3750 2.5 QPA8-3601000 $63.15 QPA8-3601000X $68.95 00000036
.4100 .4320 .750 .0080 .120 1.040 .160 .5000 2.5 QPA8-410750 $88.50 QPA8-410750X $95.65 00000037
.4100 .4320 1.250 .0080 .120 1.540 .160 .5000 3.0 QPA8-4101250 $88.50 QPA8-4101250X $95.65 00000038
.4600 .4820 .750 .0080 .140 1.040 .210 .5000 2.5 QPA8-460750 $88.50 QPA8-460750X $95.65 00000039
.4600 .4820 1.000 .0080 .140 1.040 .210 .5000 2.5 QPA8-4601000 $88.50 QPA8-4601000X $95.65 00000040
