Quick Change - Holders & Parts - Tool Holders - Straight Holder - Standard Length

Quick Change - Holders & Parts
QTS/QTSP | Turning Tools

Optimized for use with Micro 100's Micro-Quik­™ system, this offering of fully stocked tool holders are engineered with a headless design to promote versatility in any Swiss, standard lathe, or multi-function lathe. Further, this holder is standard plumbed and features 3 coolant ports for coolant accessibility.

  • Headless tool holder engineered for maximum versatility in any Swiss, standard lathe, or multi-function lathe

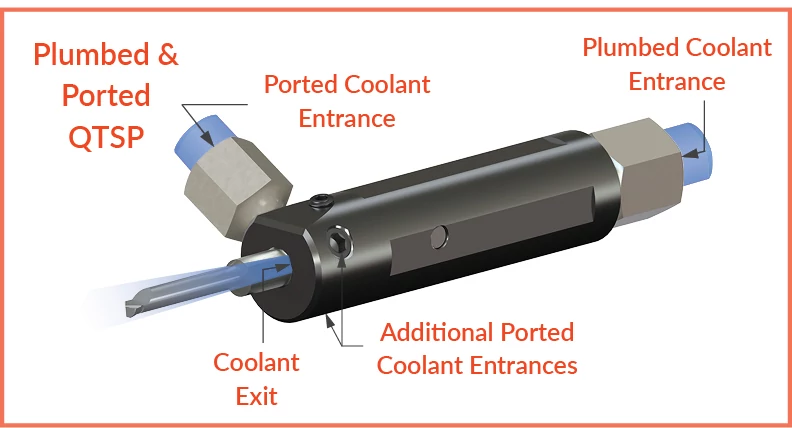

  • Standard plumbed and 3 ported options for more enhanced coolant accessibility
  • Proprietary Micro-Quik™ quick change system maximizes productivity through reliable accuracy and locational repeatability
  • Headless design allows for installation through the back of the tooling block in machines where work envelope is limited
  • Top screw orientation for easy access to set screw without interference of adjacent tools
  • 4 alignment flats allow for multiple tool engagements and holder orientations

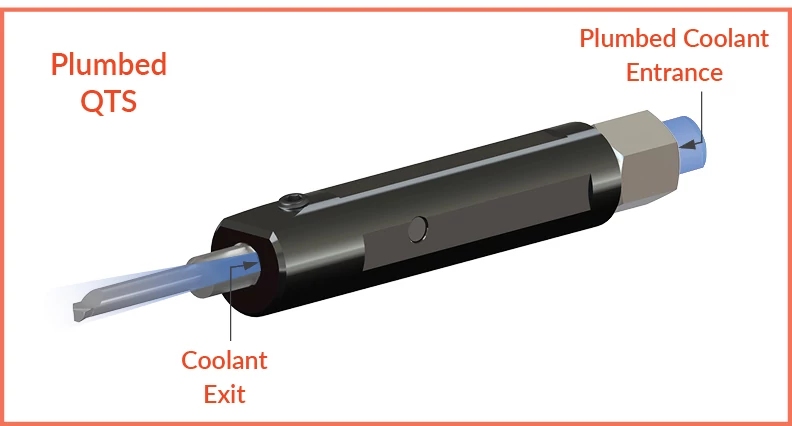

  • Holder plumbed for NPT coolant connection
  • Heat treated and black oxide coated for durability and corrosion resistance
  • Precision manufactured in the USA

Advanced Search

Internal Diameter Shank Diameter Coolant Access Type Plumbed Thread Overall Length Locating Locking Screw Tool Holder Add to Cart Default Sort
D1 +.0005"/-.0000" D2 -.0003"/-.0008" -.008 -.020mm   # L1    Tool # Price
.1875 12 mm Plumbed 1/8-27 2.8 40215 QTS-187-472 $120.00 00000001
.1875 .5000 Plumbed 1/8-27 2.8 40215 QTS-187-500 $120.00 00000002
.1875 .6250 Plumbed 1/8-27 2.8 40215 QTS-187-625 $130.00 00000003
.1875 16 mm Plumbed 1/8-27 2.8 40215 QTS-187-630 $130.00 00000004
.1875 .7500 Plumbed & Ported 1/8-27 2.8 40216 QTSP-187-750 $175.00 00000005
.1875 20 mm Plumbed & Ported 1/8-27 2.8 40216 QTSP-187-787 $175.00 00000006
.1875 22 mm Plumbed & Ported 1/8-27 2.8 40216 QTSP-187-866 $175.00 00000007
.1875 25 mm Plumbed & Ported 1/8-27 2.8 40208 QTSP-187-984 $175.00 00000008
.1875 1.0000 Plumbed & Ported 1/8-27 2.8 40208 QTSP-187-1000 $175.00 00000009
.2500 12 mm Plumbed 1/8-27 2.8 40215 QTS-250-472 $120.00 00000010
.2500 .5000 Plumbed 1/8-27 2.8 40215 QTS-250-500 $120.00 00000011
.2500 .6250 Plumbed 1/8-27 2.8 40215 QTS-250-625 $130.00 00000012
.2500 16 mm Plumbed 1/8-27 2.8 40215 QTS-250-630 $130.00 00000013
.2500 .7500 Plumbed & Ported 1/8-27 2.8 40216 QTSP-250-750 $175.00 00000014
.2500 20 mm Plumbed & Ported 1/8-27 2.8 40216 QTSP-250-787 $175.00 00000015
.2500 22 mm Plumbed & Ported 1/8-27 2.8 40216 QTSP-250-866 $175.00 00000016
.2500 25 mm Plumbed & Ported 1/8-27 2.8 40216 QTSP-250-984 $175.00 00000017
.2500 1.0000 Plumbed & Ported 1/8-27 2.8 40208 QTSP-250-1000 $175.00 00000018
.3125 .6250 Plumbed 1/8-27 2.8 40215 QTS-312-625 $130.00 00000019
.3125 16 mm Plumbed 1/8-27 2.8 40215 QTS-312-630 $130.00 00000020
.3125 .7500 Plumbed 1/4-18 2.8 40215 QTS-312-750 $140.00 00000021
.3125 20 mm Plumbed 1/4-18 2.8 40215 QTS-312-787 $140.00 00000022
.3125 22 mm Plumbed & Ported 1/4-18 2.8 40216 QTSP-312-866 $175.00 00000023
.3125 25 mm Plumbed & Ported 1/4-18 2.8 40216 QTSP-312-984 $175.00 00000024
.3125 1.0000 Plumbed & Ported 1/4-18 2.8 40216 QTSP-312-1000 $175.00 00000025
.3750 .6250 Plumbed 1/4-18 2.8 40215 QTS-375-625 $130.00 00000026
.3750 .7500 Plumbed 1/4-18 2.8 40215 QTS-375-750 $140.00 00000027
.3750 20 mm Plumbed 1/4-18 2.8 40215 QTS-375-787 $140.00 00000028
.3750 22 mm Plumbed & Ported 1/4-18 2.8 40215 QTSP-375-866 $175.00 00000029
.3750 25 mm Plumbed & Ported 1/4-18 2.8 40216 QTSP-375-984 $175.00 00000030
.3750 1.0000 Plumbed & Ported 1/4-18 2.8 40216 QTSP-375-1000 $175.00 00000031
.5000 .7500 Plumbed 3/8-18 2.8 40215 QTS-500-750 $140.00 00000032
.5000 1.0000 Plumbed & Ported 3/8-18 2.8 40216 QTSP-500-1000 $160.00 00000033
