Quick Change - Grooving Tools - Retaining Ring - Corner Radius - Right Hand

Quick Change - Grooving Tools
QRRC | Turning Tools

Micro 100's fully stocked offering of right hand, corner radius profile, retaining ring grooving tools for bores .198" and larger feature a coolant enabled shank design and AlTiN coating for added lubricity and superior heat resistance in difficult to machine materials.

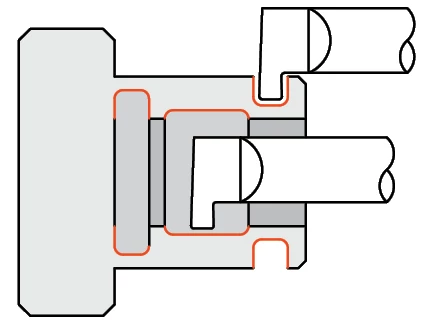

  • Designed for generating corner radius retaining ring grooves in bores .198" and larger
  • Corner radius designed for extended tool life and finished groove profiling
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Coolant fed enabled shank design
  • Proprietary Micro-Quik™ quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

Width Head Width Minimum Bore Diameter* Maximum Bore Depth Radius Projection Length From Holder Centerline Offset Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
W +.001"/-.000" H   L2 +.030"/-.000" R +.001"/-.001" P L4 F D2 (h6) L1 Tool # Price Tool # Price
.017 .1800 .1980 .250 .003 .030 .590 .086 .1875 1.5 QRRC3-017-250-180 $35.70 QRRC3-017-250-180X $37.60 00000001
.017 .1800 .1980 .375 .003 .030 .590 .086 .1875 1.5 QRRC3-017-375-180 $35.70 QRRC3-017-375-180X $37.60 00000002
.017 .2450 .2670 .250 .003 .050 .853 .120 .2500 2.0 QRRC3-017-250-245 $44.65 QRRC3-017-250-245X $48.55 00000003
.017 .2450 .2670 .375 .003 .050 .853 .120 .2500 2.0 QRRC3-017-375-245 $44.65 QRRC3-017-375-245X $48.55 00000004
.020 .1800 .1980 .250 .003 .030 .590 .086 .1875 1.5 QRRC3-020-250-180 $35.70 QRRC3-020-250-180X $37.60 00000005
.020 .1800 .1980 .375 .003 .030 .590 .086 .1875 1.5 QRRC3-020-375-180 $35.70 QRRC3-020-375-180X $37.60 00000006
.020 .2450 .2670 .250 .003 .050 .853 .120 .2500 2.0 QRRC3-020-250-245 $44.65 QRRC3-020-250-245X $48.55 00000007
.020 .2450 .2670 .375 .003 .050 .853 .120 .2500 2.0 QRRC3-020-375-245 $44.65 QRRC3-020-375-245X $48.55 00000008
.025 .2450 .2670 .250 .003 .050 .853 .120 .2500 2.0 QRRC3-025-250-245 $44.65 QRRC3-025-250-245X $48.55 00000009
.025 .2450 .2670 .375 .003 .050 .853 .120 .2500 2.0 QRRC3-025-375-245 $44.65 QRRC3-025-375-245X $48.55 00000010
.030 .1800 .1980 .250 .003 .030 .590 .086 .1875 1.5 QRRC3-030-250-180 $35.70 QRRC3-030-250-180X $37.60 00000011
.030 .1800 .1980 .500 .003 .030 .590 .086 .1875 1.5 QRRC3-030-500-180 $35.70 QRRC3-030-500-180X $37.60 00000012
.030 .2450 .2670 .250 .003 .050 .853 .120 .2500 2.0 QRRC3-030-250-245 $44.65 QRRC3-030-250-245X $48.55 00000013
.030 .2450 .2670 .375 .003 .050 .853 .120 .2500 2.0 QRRC3-030-375-245 $44.65 QRRC3-030-375-245X $48.55 00000014
.030 .3100 .3320 .500 .003 .100 .853 .153 .3125 2.0 QRRC3-030-500-310 $55.65 QRRC3-030-500-310X $59.85 00000015
.030 .3100 .3320 .750 .003 .100 .853 .153 .3125 2.0 QRRC3-030-750-310 $55.65 QRRC3-030-750-310X $59.85 00000016
.033 .3100 .3320 .500 .003 .100 .853 .153 .3125 2.0 QRRC3-033-500-310 $55.65 QRRC3-033-500-310X $59.85 00000017
.033 .3100 .3320 .750 .003 .100 .853 .153 .3125 2.0 QRRC3-033-750-310 $55.65 QRRC3-033-750-310X $59.85 00000018
.038 .3100 .3320 .500 .003 .100 .853 .153 .3125 2.0 QRRC3-038-500-310 $55.65 QRRC3-038-500-310X $59.85 00000019
.038 .3100 .3320 .750 .003 .100 .853 .153 .3125 2.0 QRRC3-038-750-310 $55.65 QRRC3-038-750-310X $59.85 00000020
*Suggested Minimum Bore Diameter to accommodate chip evacuation and retract clearance in static (not live) applications.
Width Head Width Minimum Bore Diameter* Maximum Bore Depth Radius Projection Length From Holder Centerline Offset Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
W +.002"/-.000" H   L2 +.030"/-.000" R +.001"/-.001" P L4 F D2 (h6) L1 Tool # Price Tool # Price
.039 .3700 .3920 .500 .003 .100 .853 .182 .3750 2.0 QRRC3-039-500-370 $70.50 QRRC3-039-500-370X $74.70 00000001
.039 .3700 .3920 .750 .003 .100 .853 .182 .3750 2.0 QRRC3-039-750-370 $70.50 QRRC3-039-750-370X $74.70 00000002
.039 .3700 .3920 1.000 .003 .100 1.353 .182 .3750 2.5 QRRC3-039-1000-370 $70.50 QRRC3-039-1000-370X $76.30 00000003
.062 .3700 .3920 .500 .003 .100 .853 .182 .3750 2.0 QRRC3-062-500-370 $70.50 QRRC3-062-500-370X $74.70 00000004
.062 .3700 .3920 .500 .006 .100 .853 .182 .3750 2.0 QRRC6-062-500-370 $70.50 QRRC6-062-500-370X $74.70 00000005
.062 .3700 .3920 .750 .003 .100 .853 .182 .3750 2.0 QRRC3-062-750-370 $70.50 QRRC3-062-750-370X $74.70 00000006
.062 .3700 .3920 .750 .006 .100 .853 .182 .3750 2.0 QRRC6-062-750-370 $70.50 QRRC6-062-750-370X $74.70 00000007
.062 .3700 .3920 1.000 .003 .100 1.353 .182 .3750 2.5 QRRC3-062-1000-370 $70.50 QRRC3-062-1000-370X $76.30 00000008
.062 .3700 .3920 1.000 .006 .100 1.353 .182 .3750 2.5 QRRC6-062-1000-370 $70.50 QRRC6-062-1000-370X $76.30 00000009
.087 .3700 .3920 .500 .003 .100 .853 .182 .3750 2.0 QRRC3-087-500-370 $70.50 QRRC3-087-500-370X $74.70 00000010
.087 .3700 .3920 .500 .006 .100 .853 .182 .3750 2.0 QRRC6-087-500-370 $70.50 QRRC6-087-500-370X $74.70 00000011
.087 .3700 .3920 .750 .003 .100 .853 .182 .3750 2.0 QRRC3-087-750-370 $70.50 QRRC3-087-750-370X $74.70 00000012
.087 .3700 .3920 .750 .006 .100 .853 .182 .3750 2.0 QRRC6-087-750-370 $70.50 QRRC6-087-750-370X $74.70 00000013
.087 .3700 .3920 1.000 .003 .100 1.353 .182 .3750 2.5 QRRC3-087-1000-370 $70.50 QRRC3-087-1000-370X $76.30 00000014
.087 .3700 .3920 1.000 .006 .100 1.353 .182 .3750 2.5 QRRC6-087-1000-370 $70.50 QRRC6-087-1000-370X $76.30 00000015
.093 .4950 .5170 .750 .003 .150 1.040 .245 .5000 2.5 QRRC3-093-750-495 $96.90 QRRC3-093-750-495X $104.05 00000016
.093 .4950 .5170 .750 .006 .150 1.040 .245 .5000 2.5 QRRC6-093-750-495 $96.90 QRRC6-093-750-495X $104.05 00000017
.093 .4950 .5170 1.000 .003 .150 1.040 .245 .5000 2.5 QRRC3-093-1000-495 $96.90 QRRC3-093-1000-495X $104.05 00000018
.093 .4950 .5170 1.000 .006 .150 1.040 .245 .5000 2.5 QRRC6-093-1000-495 $96.90 QRRC6-093-1000-495X $104.05 00000019
.125 .4950 .5170 .750 .003 .150 1.040 .245 .5000 2.5 QRRC3-125-750-495 $96.90 QRRC3-125-750-495X $104.05 00000020
.125 .4950 .5170 .750 .006 .150 1.040 .245 .5000 2.5 QRRC6-125-750-495 $96.90 QRRC6-125-750-495X $104.05 00000021
.125 .4950 .5170 1.000 .003 .150 1.040 .245 .5000 2.5 QRRC3-125-1000-495 $96.90 QRRC3-125-1000-495X $104.05 00000022
.125 .4950 .5170 1.000 .006 .150 1.040 .245 .5000 2.5 QRRC6-125-1000-495 $96.90 QRRC6-125-1000-495X $104.05 00000023
