Quick Change - Grooving Tools - Full Radius

Quick Change - Grooving Tools
QFR | Turning Tools

The QFR line of full radius grooving tools is part of Micro 100's Micro-Quik™, a proprietary quick change system that maximizes productivity through reliable accuracy and locational repeatability.

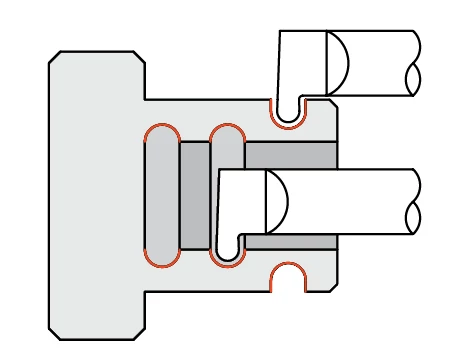

  • Designed for generating full radius grooves in bores .198" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Coolant fed enabled shank design
  • Full radius profile
  • Proprietary Micro-Quik™ quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

*Suggested Minimum Bore Diameter to accommodate chip evacuation and retract clearance in static (not live) applications.
Width Radius Head Width Minimum Bore Diameter* Maximum Bore Depth Projection Length From Holder Centerline Offset Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
W +.002"/-.000" R H # L2 +.030"/ -.000" P L4 F D2 (h6) L1 Tool # Price Tool # Price
.017 .0085 .1800 .1980 .250 .030 .590 .086 .1875 1.5 QFR-017-4 $35.70 QFR-017-4X $37.60 00000001
.017 .0085 .1800 .1980 .375 .030 .590 .086 .1875 1.5 QFR-017-6 $35.70 QFR-017-6X $37.60 00000002
.017 .0085 .1800 .1980 .500 .030 .590 .086 .1875 1.5 QFR-017-8 $35.70 QFR-017-8X $37.60 00000003
.017 .0085 .1800 .1980 .625 .030 1.090 .086 .1875 2.0 QFR-017-10 $35.70 QFR-017-10X $37.60 00000004
.020 .0100 .1800 .1980 .250 .030 .590 .086 .1875 1.5 QFR-020-4 $35.70 QFR-020-4X $37.60 00000005
.020 .0100 .1800 .1980 .375 .030 .590 .086 .1875 1.5 QFR-020-6 $35.70 QFR-020-6X $37.60 00000006
.020 .0100 .1800 .1980 .500 .030 .590 .086 .1875 1.5 QFR-020-8 $35.70 QFR-020-8X $37.60 00000007
.020 .0100 .1800 .1980 .625 .030 1.090 .086 .1875 2.0 QFR-020-10 $35.70 QFR-020-10X $37.60 00000008
.025 .0125 .2450 .2670 .250 .050 1.090 .120 .2500 2.0 QFR-025-4 $44.65 QFR-025-4X $48.55 00000009
.025 .0125 .2450 .2670 .375 .050 1.090 .120 .2500 2.0 QFR-025-6 $44.65 QFR-025-6X $48.55 00000010
.025 .0125 .2450 .2670 .500 .050 1.090 .120 .2500 2.0 QFR-025-8 $44.65 QFR-025-8X $48.55 00000011
.025 .0125 .2450 .2670 .625 .050 1.090 .120 .2500 2.0 QFR-025-10 $44.65 QFR-025-10X $48.55 00000012
.030 .0150 .2450 .2670 .250 .050 1.090 .120 .2500 2.0 QFR-030-4 $44.65 QFR-030-4X $48.55 00000013
.030 .0150 .2450 .2670 .375 .050 1.090 .120 .2500 2.0 QFR-030-6 $44.65 QFR-030-6X $48.55 00000014
.030 .0150 .2450 .2670 .500 .050 1.090 .120 .2500 2.0 QFR-030-8 $44.65 QFR-030-8X $48.55 00000015
.030 .0150 .2450 .2670 .625 .050 1.090 .120 .2500 2.0 QFR-030-10 $44.65 QFR-030-10X $48.55 00000016
.033 .0165 .3100 .3320 .375 .100 1.090 .154 .3125 2.0 QFR-033-6 $55.65 QFR-033-6X $59.85 00000017
.033 .0165 .3100 .3320 .500 .100 1.090 .154 .3125 2.0 QFR-033-8 $55.65 QFR-033-8X $59.85 00000018
.033 .0165 .3100 .3320 .750 .100 1.090 .154 .3125 2.0 QFR-033-12 $55.65 QFR-033-12X $59.85 00000019
.038 .0190 .3100 .3320 .375 .100 1.090 .154 .3125 2.0 QFR-038-6 $55.65 QFR-038-6X $59.85 00000020
.038 .0190 .3100 .3320 .500 .100 1.090 .154 .3125 2.0 QFR-038-8 $55.65 QFR-038-8X $59.85 00000021
.038 .0190 .3100 .3320 .750 .100 1.090 .154 .3125 2.0 QFR-038-12 $55.65 QFR-038-12X $59.85 00000022
.039 .0195 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-039-8 $70.50 QFR-039-8X $74.70 00000023
.039 .0195 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-039-12 $70.50 QFR-039-12X $74.70 00000024
.039 .0195 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-039-16 $70.50 QFR-039-16X $76.30 00000025
.039 .0195 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-039-20 $70.50 QFR-039-20X $76.30 00000026
.046 .0230 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-046-8 $70.50 QFR-046-8X $74.70 00000027
.046 .0230 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-046-12 $70.50 QFR-046-12X $74.70 00000028
.046 .0230 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-046-16 $70.50 QFR-046-16X $76.30 00000029
.046 .0230 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-046-20 $70.50 QFR-046-20X $76.30 00000030
.055 .0275 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-055-8 $70.50 QFR-055-8X $74.70 00000031
.055 .0275 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-055-12 $70.50 QFR-055-12X $74.70 00000032
.055 .0275 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-055-16 $70.50 QFR-055-16X $76.30 00000033
.055 .0275 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-055-20 $70.50 QFR-055-20X $76.30 00000034
.059 .0295 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-059-8 $70.50 QFR-059-8X $74.70 00000035
.059 .0295 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-059-12 $70.50 QFR-059-12X $74.70 00000036
.059 .0295 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-059-16 $70.50 QFR-059-16X $76.30 00000037
.059 .0295 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-059-20 $70.50 QFR-059-20X $76.30 00000038
.062 .0310 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-062-8 $70.50 QFR-062-8X $74.70 00000039
.062 .0310 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-062-12 $70.50 QFR-062-12X $74.70 00000040
.062 .0310 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-062-16 $70.50 QFR-062-16X $76.30 00000041
.062 .0310 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-062-20 $70.50 QFR-062-20X $76.30 00000042
.069 .0345 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-069-8 $70.50 QFR-069-8X $74.70 00000043
.069 .0345 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-069-12 $70.50 QFR-069-12X $74.70 00000044
.069 .0345 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-069-16 $70.50 QFR-069-16X $76.30 00000045
.069 .0345 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-069-20 $70.50 QFR-069-20X $76.30 00000046
.079 .0395 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-079-8 $70.50 QFR-079-8X $74.70 00000047
.079 .0395 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-079-12 $70.50 QFR-079-12X $74.70 00000048
.079 .0395 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-079-16 $70.50 QFR-079-16X $76.30 00000049
.079 .0395 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-079-20 $70.50 QFR-079-20X $76.30 00000050
.087 .0435 .3700 .3920 .500 .100 .853 .183 .3750 2.0 QFR-087-8 $70.50 QFR-087-8X $74.70 00000051
.087 .0435 .3700 .3920 .750 .100 .853 .183 .3750 2.0 QFR-087-12 $70.50 QFR-087-12X $74.70 00000052
.087 .0435 .3700 .3920 1.000 .100 1.353 .183 .3750 2.5 QFR-087-16 $70.50 QFR-087-16X $76.30 00000053
.087 .0435 .3700 .3920 1.250 .100 1.353 .183 .3750 2.5 QFR-087-20 $70.50 QFR-087-20X $76.30 00000054
.093 .0465 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-093-12 $96.90 QFR-093-12X $104.05 00000055
.093 .0465 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-093-16 $96.90 QFR-093-16X $104.05 00000056
.093 .0465 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-093-20 $96.90 QFR-093-20X $104.05 00000057
.093 .0465 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-093-24 $96.90 QFR-093-24X $104.05 00000058
.118 .0590 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-118-12 $96.90 QFR-118-12X $104.05 00000059
.118 .0590 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-118-16 $96.90 QFR-118-16X $104.05 00000060
.118 .0590 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-118-20 $96.90 QFR-118-20X $104.05 00000061
.118 .0590 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-118-24 $96.90 QFR-118-24X $104.05 00000062
.125 .0625 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-125-12 $96.90 QFR-125-12X $104.05 00000063
.125 .0625 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-125-16 $96.90 QFR-125-16X $104.05 00000064
.125 .0625 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-125-20 $96.90 QFR-125-20X $104.05 00000065
.125 .0625 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-125-24 $96.90 QFR-125-24X $104.05 00000066
.156 .0780 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-156-12X $104.05 00000067
.156 .0780 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-156-16X $104.05 00000068
.156 .0780 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-156-20 $96.90 QFR-156-20X $104.05 00000069
.156 .0780 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-156-24 $96.90 QFR-156-24X $104.05 00000070
.187 .0935 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-187-12 $96.90 QFR-187-12X $104.05 00000071
.187 .0935 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-187-16 $96.90 QFR-187-16X $104.05 00000072
.187 .0935 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-187-20 $96.90 QFR-187-20X $104.05 00000073
.187 .0935 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-187-24 $96.90 QFR-187-24X $104.05 00000074
.236 .1180 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-236-12 $96.90 QFR-236-12X $104.05 00000075
.236 .1180 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-236-16 $96.90 QFR-236-16X $104.05 00000076
.236 .1180 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-236-20 $96.90 QFR-236-20X $104.05 00000077
.236 .1180 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-236-24 $96.90 QFR-236-24X $104.05 00000078
.250 .1250 .4950 .5170 .750 .150 1.040 .245 .5000 2.5 QFR-250-12 $96.90 QFR-250-12X $104.05 00000079
.250 .1250 .4950 .5170 1.000 .150 1.040 .245 .5000 2.5 QFR-250-16 $96.90 QFR-250-16X $104.05 00000080
.250 .1250 .4950 .5170 1.250 .150 1.540 .245 .5000 3.0 QFR-250-20 $96.90 QFR-250-20X $104.05 00000081
.250 .1250 .4950 .5170 1.500 .150 1.540 .245 .5000 3.0 QFR-250-24 $96.90 QFR-250-24X $104.05 00000082
