End Mills - Ball - 2, 3, 4 Flute - Reduced Neck

End Mills - Ball
End Mills - Ball - 2, 3, 4 Flute - Reduced Neck

BLR / BLRM / SFBM / MMBM | Milling

These reduced neck end mills feature long flutes for deep pocket milling, and are stocked in either 2, 3, or 4 flutes, each offered with an AlTiN coating option for added lubricity and increased wear resistance.

  • Long reach for deep pocket milling
  • SFBM and MMBM manufactured to improved cutter diameter tolerance (H8) for mold making
  • 30° helix
  • Center cutting
  • Ball profile
  • AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Advanced Search

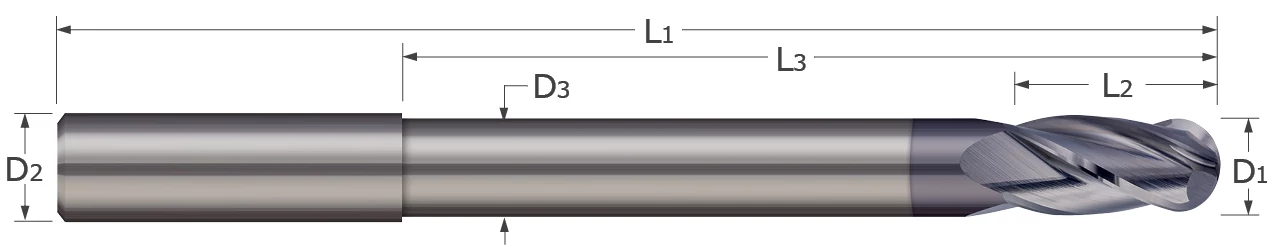

Cutter Diameter* Length of Cut Overall Reach Neck Diameter Flutes Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
D1 +.0000"/-.0020" h9 decimal equivalent L2 +.015"/-.000"
+.38 mm/-.00 mm
L3 +.015"/-.015"
+.38mm/-.38mm
D3 # D2 (h6) L1 Tool # Price Tool # Price
0.2 mm .0078 0.3 mm 0.3 mm - 2 6 mm 57 mm SFBM-002-0 $61.60 SFBM-002-0X $66.50 00000001
0.3 mm .0118 0.3 mm 3.0 mm 0.28 mm 2 4 mm 50 mm MMBM-003-3 $46.85 MMBM-003-3X $49.75 00000002
0.3 mm .0118 0.3 mm 6.0 mm 0.3 mm 2 4 mm 50 mm MMBM-003-6X $49.75 00000003
0.3 mm .0118 0.4 mm 0.4 mm 0.4 mm 2 6 mm 57 mm SFBM-003-0X $59.25 00000004
0.3 mm .0118 0.4 mm 1.0 mm 0.25 mm 2 6 mm 57 mm SFBM-003-1 $54.35 00000005
0.4 mm .0157 0.4 mm 3.0 mm 0.38 mm 2 4 mm 50 mm MMBM-004-3 $40.30 MMBM-004-3X $43.20 00000006
0.4 mm .0157 0.4 mm 8.0 mm 0.38 mm 2 4 mm 50 mm MMBM-004-8 $40.30 MMBM-004-8X $43.20 00000007
0.4 mm .0157 0.5 mm 1.2 mm 0.5 mm 2 6 mm 57 mm SFBM-004-1X $57.85 00000008
0.5 mm .0197 0.5 mm 5.0 mm 0.48 mm 2 4 mm 50 mm MMBM-005-5 $35.50 MMBM-005-5X $38.40 00000009
0.5 mm .0197 0.5 mm 5.0 mm 0.5 mm 2 6 mm 57 mm SFBM-005-5 $52.95 00000010
0.5 mm .0197 0.5 mm 10.0 mm 0.48 mm 2 4 mm 50 mm MMBM-005-10 $35.50 MMBM-005-10X $38.40 00000011
0.5 mm .0197 0.6 mm 1.6 mm 0.45 mm 2 6 mm 57 mm SFBM-005-1X $55.35 00000012
0.6 mm .0236 0.6 mm 12.0 mm 0.58 mm 2 4 mm 50 mm MMBM-006-12 $35.50 MMBM-006-12X $38.40 00000013
0.6 mm .0236 0.6 mm 5.0 mm 0.58 mm 2 4 mm 50 mm MMBM-006-5 $35.50 MMBM-006-5X $38.40 00000014
0.7 mm .0276 0.7 mm 5.0 mm 0.68 mm 2 4 mm 50 mm MMBM-007-5 $35.50 00000015
0.8 mm .0315 0.8 mm 2.5 mm 0.8 mm 2 6 mm 57 mm SFBM-008-2X $53.00 00000016
0.8 mm .0315 0.8 mm 5.0 mm 0.78 mm 2 4 mm 50 mm MMBM-008-5 $30.50 MMBM-008-5X $33.40 00000017
0.8 mm .0315 0.8 mm 5.2 mm 0.75 mm 2 6 mm 57 mm SFBM-008-5X $53.00 00000018
0.8 mm .0315 0.8 mm 8.0 mm 0.75 mm 2 6 mm 57 mm SFBM-008-8 $52.60 SFBM-008-8X $57.50 00000019
0.8 mm .0315 0.8 mm 10.0 mm 0.78 mm 2 4 mm 50 mm MMBM-008-10 $30.50 00000020
1.0 mm .0394 1.3 mm 3.3 mm 0.95 mm 2 6 mm 57 mm SFBM-010-3X $50.55 00000021
1.0 mm .0394 1.0 mm 6.0 mm 0.95 mm 2 6 mm 57 mm MMBM-010-6 $33.45 MMBM-010-6X $38.35 00000022
1.0 mm .0394 1.0 mm 8.0 mm 0.95 mm 2 6 mm 57 mm MMBM-010-8X $38.35 00000023
1.0 mm .0394 1.0 mm 11.0 mm 0.95 mm 2 6 mm 57 mm MMBM-010-11 $33.45 MMBM-010-11X $38.35 00000024
1.0 mm .0394 1.0 mm 12.0 mm 1.0 mm 2 6 mm 57 mm MMBM-010-12X $38.35 00000025
1.0 mm .0394 1.0 mm 15.0 mm 0.95 mm 2 6 mm 57 mm MMBM-010-15X $38.35 00000026
1.0 mm .0394 1.0 mm 20.0 mm 0.95 mm 2 6 mm 57 mm MMBM-010-20 $33.45 MMBM-010-20X $38.35 00000027
1.2 mm .0472 1.5 mm 3.5 mm 1.15 mm 2 6 mm 57 mm SFBM-012-3 $43.45 00000028
1.2 mm .0472 1.2 mm 7.0 mm 1.15 mm 2 6 mm 57 mm MMBM-012-7X $38.35 00000029
1.2 mm .0472 1.2 mm 15.0 mm 1.15 mm 2 6 mm 57 mm MMBM-012-15 $33.45 MMBM-012-15X $38.35 00000030
1.2 mm .0472 1.2 mm 20.0 mm 1.15 mm 2 6 mm 57 mm MMBM-012-20 $33.45 00000031
1.5 mm .0591 1.5 mm 7.0 mm 1.45 mm 2 6 mm 57 mm MMBM-015-7 $33.45 MMBM-015-7X $38.35 00000032
1.5 mm .0591 1.5 mm 9.5 mm 1.45 mm 2 6 mm 57 mm SFBM-015-9 $43.40 SFBM-015-9X $48.30 00000033
1.5 mm .0591 1.5 mm 15.0 mm 1.45 mm 2 6 mm 57 mm MMBM-015-15 $33.45 MMBM-015-15X $38.35 00000034
1.5 mm .0591 1.5 mm 20.0 mm 1.45 mm 2 6 mm 57 mm MMBM-015-20X $38.35 00000035
2.0 mm .0787 2.0 mm 7.0 mm 1.9 mm 2 6 mm 57 mm MMBM-020-7 $33.45 MMBM-020-7X $38.35 00000036
2.0 mm .0787 2.0 mm 15.0 mm 1.9 mm 2 6 mm 57 mm MMBM-020-15 $33.45 MMBM-020-15X $38.35 00000037
2.0 mm .0787 2.0 mm 20.0 mm 1.9 mm 2 6 mm 57 mm MMBM-020-20 $33.45 MMBM-020-20X $38.35 00000038
2.0 mm .0787 2.5 mm 9.5 mm 1.95 mm 2 6 mm 57 mm SFBM-020-9 $41.75 SFBM-020-9X $46.65 00000039
2.0 mm .0787 5.0 mm 15.0 mm 1.5 mm 2 6 mm 57 mm BLRM-020-2X $33.30 00000040
2.0 mm .0787 5.0 mm 15.0 mm 1.5 mm 4 6 mm 57 mm BLRM-020-4X $33.30 00000041
3.0 mm .1181 3.0 mm 12.0 mm 2.9 mm 2 6 mm 57 mm MMBM-030-12 $33.45 MMBM-030-12X $38.35 00000042
3.0 mm .1181 3.0 mm 15.0 mm 2.9 mm 2 6 mm 57 mm MMBM-030-15 $33.45 MMBM-030-15X $38.35 00000043
3.0 mm .1181 4.0 mm 8.0 mm 2.9 mm 2 6 mm 57 mm SFBM-030-8 $37.35 SFBM-030-8X $42.25 00000044
3.0 mm .1181 4.0 mm 15.0 mm 2.9 mm 2 6 mm 57 mm SFBM-030-15 $40.05 SFBM-030-15X $44.95 00000045
3.0 mm .1181 8.0 mm 30.0 mm 2.5 mm 2 6 mm 75 mm BLRM-030-2 $30.05 BLRM-030-2X $34.95 00000046
3.0 mm .1181 8.0 mm 30.0 mm 2.5 mm 4 6 mm 75 mm BLRM-030-4 $30.05 BLRM-030-4X $34.95 00000047
4.0 mm .1575 4.0 mm 15.0 mm 3.8 mm 2 6 mm 57 mm MMBM-040-15 $33.45 MMBM-040-15X $38.35 00000048
4.0 mm .1575 5.0 mm 10.0 mm 5.0 mm 2 6 mm 57 mm SFBM-040-10X $42.25 00000049
4.0 mm .1575 5.0 mm 20.0 mm 3.9 mm 2 6 mm 57 mm SFBM-040-20 $41.75 SFBM-040-20X $46.65 00000050
4.0 mm .1575 8.0 mm 30.0 mm 3.5 mm 2 6 mm 75 mm BLRM-040-2 $30.05 BLRM-040-2X $34.95 00000051
4.0 mm .1575 8.0 mm 30.0 mm 3.5 mm 3 6 mm 75 mm BLRM-040-3 $30.05 00000052
4.0 mm .1575 8.0 mm 30.0 mm 3.5 mm 4 6 mm 75 mm BLRM-040-4 $30.05 BLRM-040-4X $34.95 00000053
*.0005" max TIR
** SFBM and MMBM tools held to h8 tolerance
Cutter Diameter* Length of Cut Overall Reach Neck Diameter Flutes Shank Diameter Overall Length Uncoated AlTiN Coated Add to Cart Default Sort
D1 +.0000"/-.0030" h9 decimal equivalent L2 +.015"/-.000"
+.38mm/-.00mm
L3 +.030"/-.030"
+.38mm/-.38mm
D3 # D2 (h6) L1 +.005"/-.005"
+.13mm/-.13mm
Tool # Price Tool # Price
.1875 .1875 .375 2.00 .1675 2 .1875 3.0 BLR-187-2 $35.45 BLR-187-2X $39.45 00000001
.1875 .1875 .375 2.00 .1675 4 .1875 3.0 BLR-187-4 $35.45 BLR-187-4X $39.45 00000002
5 mm .1969 6.0 mm 11.0 mm 4.9 mm 2 6 mm 57 mm SFBM-050-11X $40.35 00000003
6 mm .2362 7.5 mm 12.5 mm 5.9 mm 2 6 mm 57 mm SFBM-060-12 $34.90 SFBM-060-12X $39.80 00000004
6 mm .2362 7.5 mm 25.0 mm 5.9 mm 2 6 mm 57 mm SFBM-060-25 $37.60 SFBM-060-25X $42.50 00000005
6 mm .2362 12.0 mm 50.0 mm 5.5 mm 2 6 mm 100 mm BLRM-060-2 $38.55 00000006
6 mm .2362 12.0 mm 50.0 mm 5.5 mm 4 6 mm 100 mm BLRM-060-4 $38.55 BLRM-060-4X $43.45 00000007
6 mm .2362 12.0 mm 50.0 mm 12.0 mm 3 6 mm 100 mm BLRM-060-3X $43.45 00000008
.2500 .2500 .500 2.50 .2300 2 .2500 4.0 BLR-250-2 $42.75 BLR-250-2X $47.65 00000009
.2500 .2500 .500 2.50 .2300 4 .2500 4.0 BLR-250-4 $42.75 BLR-250-4X $47.65 00000010
.3125 .3125 .625 2.63 .2925 2 .3125 4.0 BLR-312-2 $49.25 BLR-312-2X $57.65 00000011
8 mm .3150 14.0 mm 50.0 mm 7.5 mm 2 8 mm 100 mm BLRM-080-2 $52.60 BLRM-080-2X $58.40 00000012
8 mm .3150 14.0 mm 50.0 mm 7.5 mm 4 8 mm 100 mm BLRM-080-4 $52.60 BLRM-080-4X $58.40 00000013
.3750 .3750 .750 2.75 .3550 4 .3750 4.0 BLR-375-4 $56.75 BLR-375-4X $65.15 00000014
10 mm .3937 18.0 mm 65.0 mm 9.5 mm 2 10 mm 120 mm BLRM-100-2 $59.10 00000015
10 mm .3937 18.0 mm 65.0 mm 9.5 mm 3 10 mm 120 mm BLRM-100-3 $59.10 00000016
10 mm .3937 18.0 mm 65.0 mm 9.5 mm 4 10 mm 120 mm BLRM-100-4 $59.10 BLRM-100-4X $68.90 00000017
.4375 .4375 1.000 4.50 .4175 2 .4375 6.0 BLR-437-2 $85.60 BLR-437-2X $96.65 00000018
.4375 .4375 1.000 4.50 .4175 4 .4375 6.0 BLR-437-4 $85.60 00000019
12 mm .4724 22.0 mm 80.0 mm 11.5 mm 2 12 mm 130 mm BLRM-120-2 $82.80 BLRM-120-2X $94.80 00000020
12 mm .4724 22.0 mm 80.0 mm 11.5 mm 3 12 mm 130 mm BLRM-120-3 $82.80 BLRM-120-3X $94.80 00000021
12 mm .4724 22.0 mm 80.0 mm 11.5 mm 4 12 mm 130 mm BLRM-120-4X $94.80 00000022
.5000 .5000 1.000 4.50 .4800 2 .5000 6.0 BLR-500-2 $97.90 BLR-500-2X $111.90 00000023
.5000 .5000 1.000 4.50 .4800 4 .5000 6.0 BLR-500-4 $97.90 BLR-500-4X $111.90 00000024
.6250 .6250 1.250 4.50 .6050 2 .6250 6.0 BLR-625-2 $173.45 00000025
16 mm .6299 30.0 mm 100.0 mm 15.5 mm 4 16 mm 150 mm BLRM-160-4 $146.20 00000026
.7500 .7500 1.500 4.50 .7300 2 .7500 6.0 BLR-750-2 $263.45 00000027
20 mm .7874 38.0 mm 100.0 mm 19.5 mm 3 20 mm 150 mm BLRM-200-3 $239.20 BLRM-200-3X $264.30 00000028
20 mm .7874 38.0 mm 100.0 mm 19.5 mm 4 20 mm 150 mm BLRM-200-4 $239.20 BLRM-200-4X $264.30 00000029
20 mm .7874 38.0 mm 100.0 mm 38.0 mm 2 20 mm 150 mm BLRM-200-2X $264.30 00000030
1.0000 1.0000 1.500 4.50 .9800 4 1.000 6.0 BLR-001-4 $399.35 00000031
