Tool # QBRKM-6002040

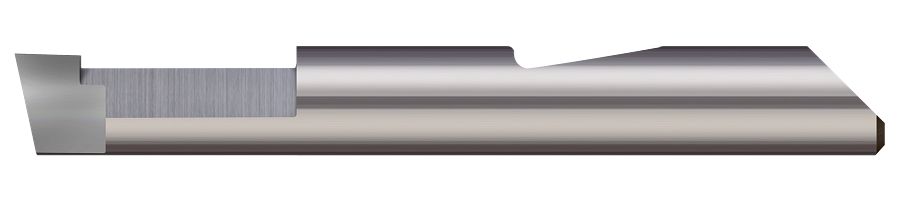

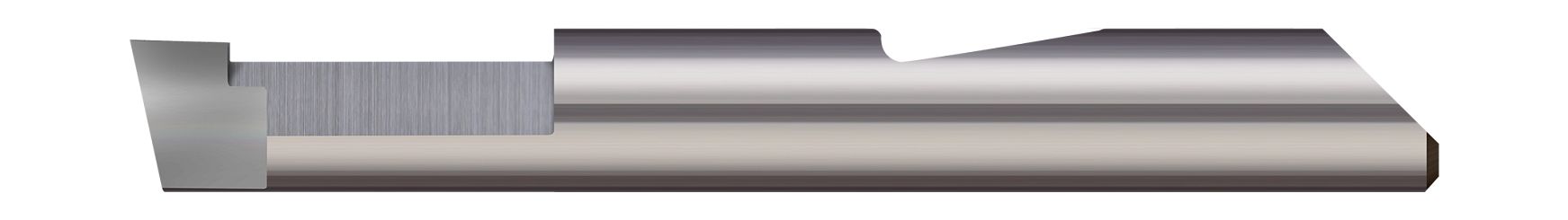

Quick Change - Broaching Tools - Metric Keyway, Internal Diameter (ID) - Quick Change
- Tolerance Grade: JS9
- Broach Width: 0.2362"
- Minimum Bore Diameter: 0.3125" (5/16)
- Max Broach Depth: 1.575"
- Corner Radius: 0.0080"
- Tool #: QBRKM-6002040
- Quantity Available: 15
- Price: $0 USD
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries

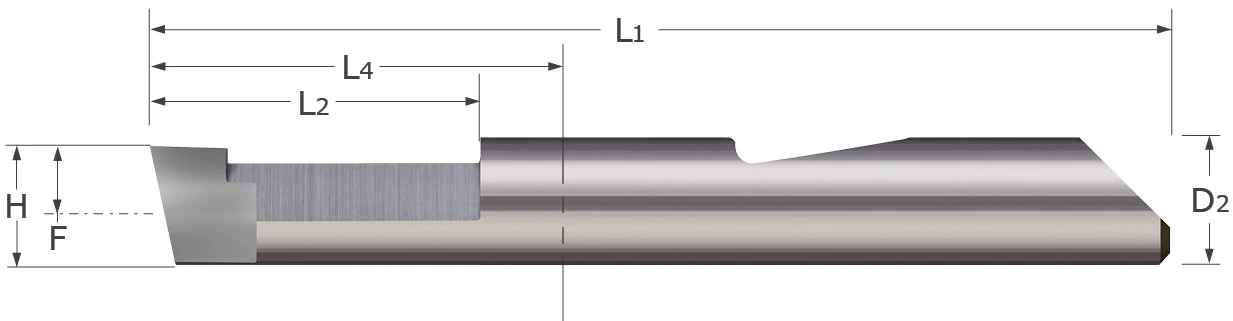

TOOL DIMENSIONS
- Tolerance Grade JS9
- Broach Width 0.2362"
- Minimum Bore Diameter 0.3125" (5/16)
- Max Broach Depth 1.575"
- Corner Radius 0.0080"
- Max Radial Engagement 0.1420"
- Broach Height 0.253"
- Centerline Offset 0.0970"
- Length From Holder 1.853"
- Shank Diameter 0.3125" (5/16)
- Overall Length 3.00" (3)
- Coating UN
- Profile Broach
- Catalog Page 107
