Tool # QBRKM-5002025K

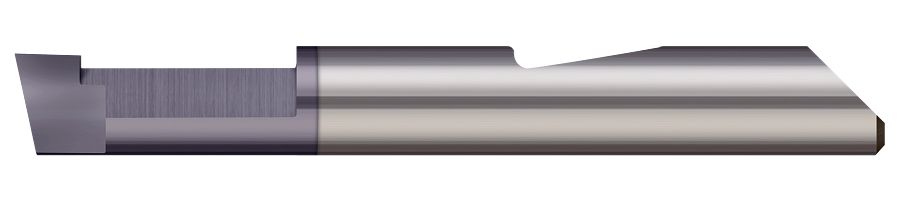

Quick Change - Broaching Tools - Metric Keyway, Internal Diameter (ID) - Quick Change
- Tolerance Grade: JS9
- Broach Width: 0.1969"
- Minimum Bore Diameter: 0.2500" (1/4)
- Max Broach Depth: 0.984" (63/64)
- Corner Radius: 0.0080"
- Tool #: QBRKM-5002025K
- Quantity Available: 13
- Price: $0 USD
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Tolerance Grade JS9
- Broach Width 0.1969"
- Minimum Bore Diameter 0.2500" (1/4)
- Max Broach Depth 0.984" (63/64)
- Corner Radius 0.0080"
- Max Radial Engagement 0.0750"
- Broach Height 0.197"
- Centerline Offset 0.0720"
- Length From Holder 1.353"
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.50" (2-1/2)
- Coating NACRO
- Profile Broach
- Catalog Page 107
