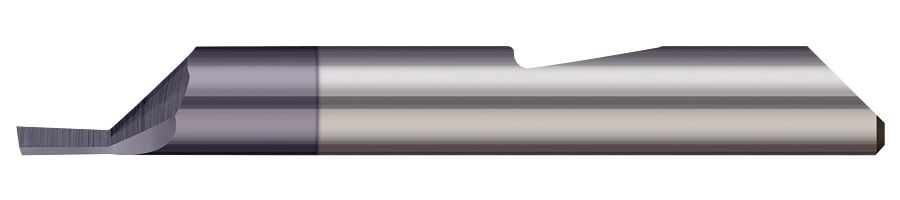

Tool # QBRH-4045K
Quick Change - Broaching Tools - Hexagon, Internal Diameter (ID) - Quick Change
- Hex Width Range: .157"-.177" (4.0mm-4.5mm)
- Broach Width: 0.0820"
- Max Broach Depth: 0.236"
- Corner Radius: 0.0040"
- Broach Height: 0.155"
- Tool #: QBRH-4045K
- Quantity Available: 14
- Price: $0 USD
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Hex Width Range .157"-.177" (4.0mm-4.5mm)
- Broach Width 0.0820"
- Max Broach Depth 0.236"
- Corner Radius 0.0040"
- Broach Height 0.155"
- Centerline Offset 0.0610"
- Length From Holder 0.590"
- Shank Diameter 0.1875" (3/16)
- Overall Length 1.50" (1-1/2)
- Coating NACRO
- Profile Broach
- Catalog Page 109
